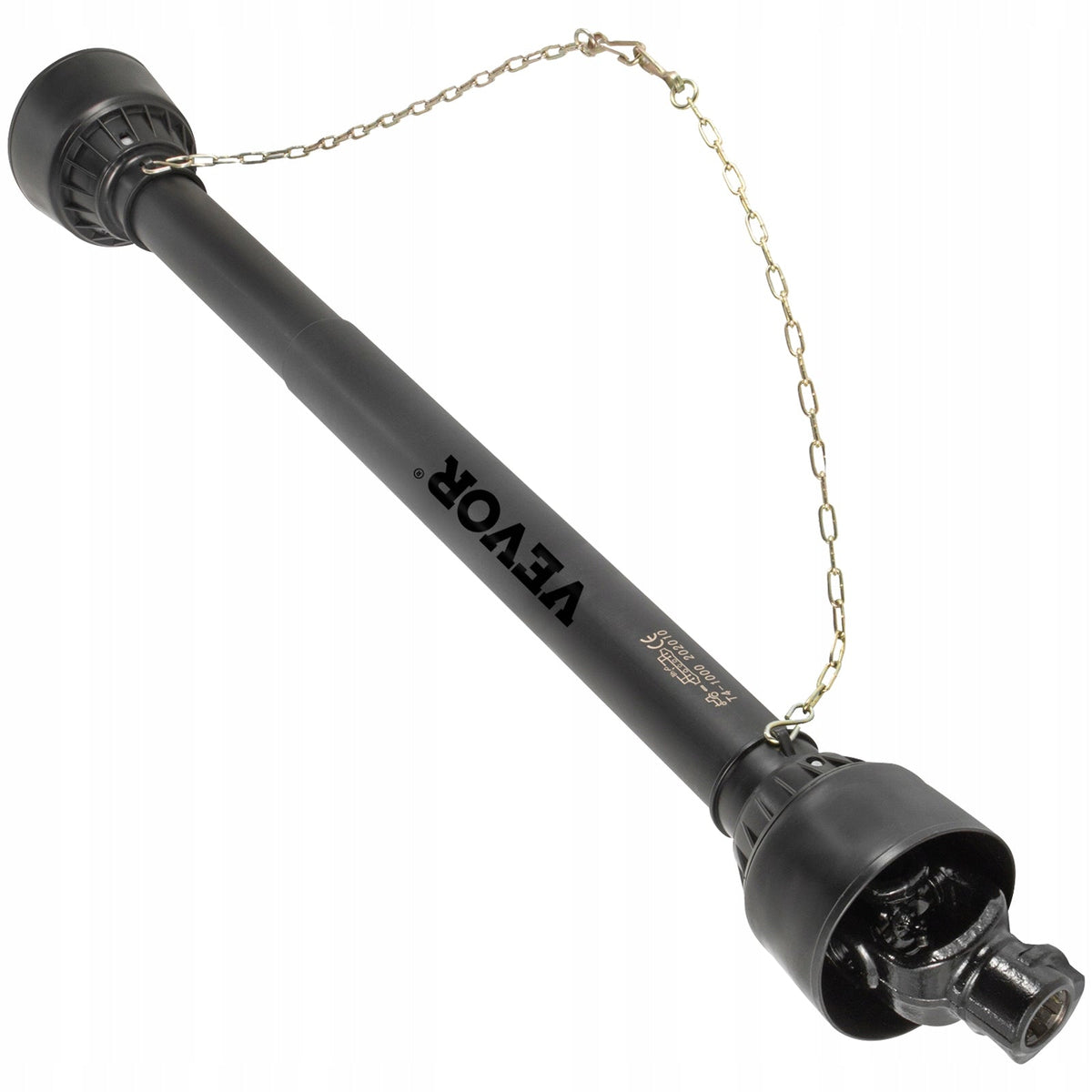

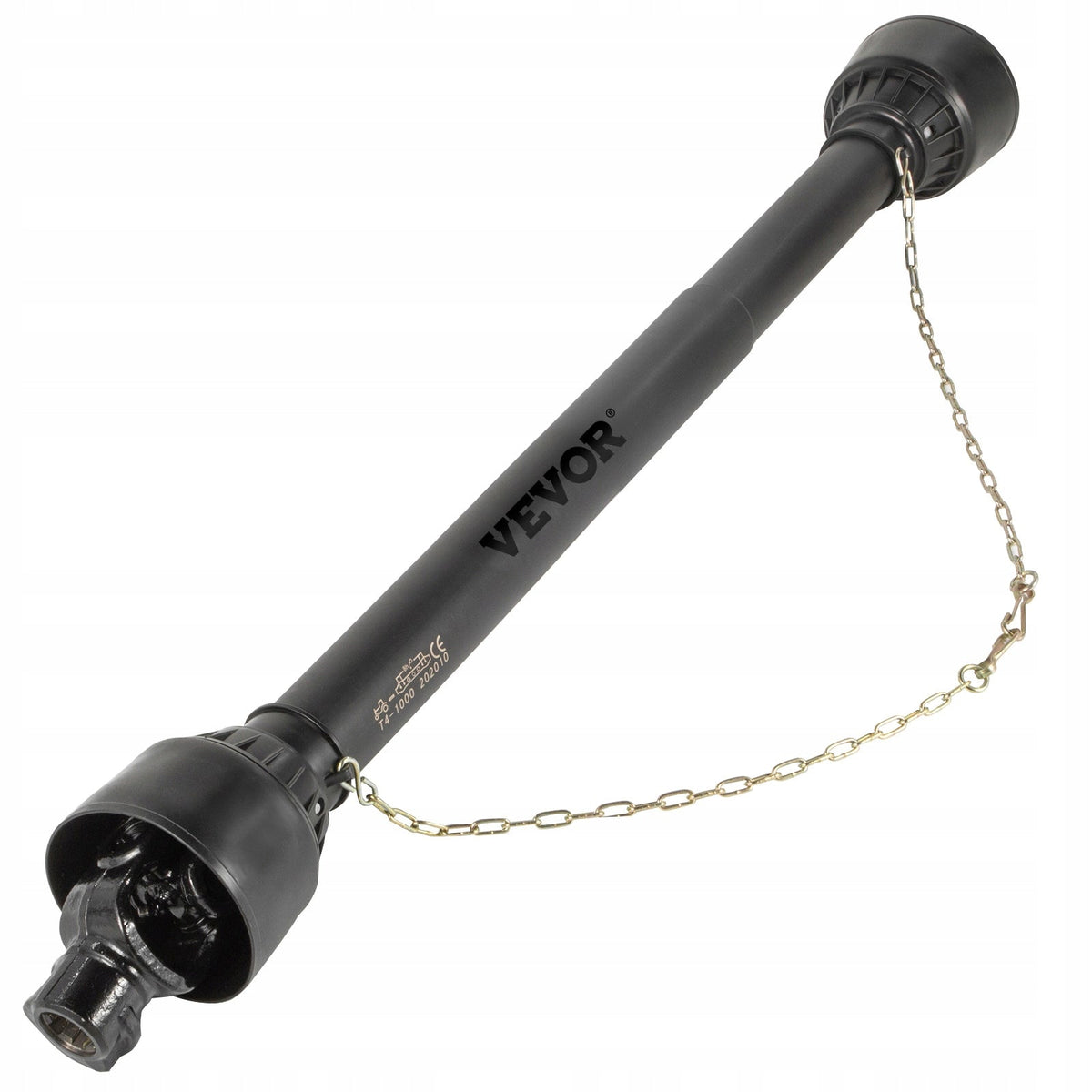

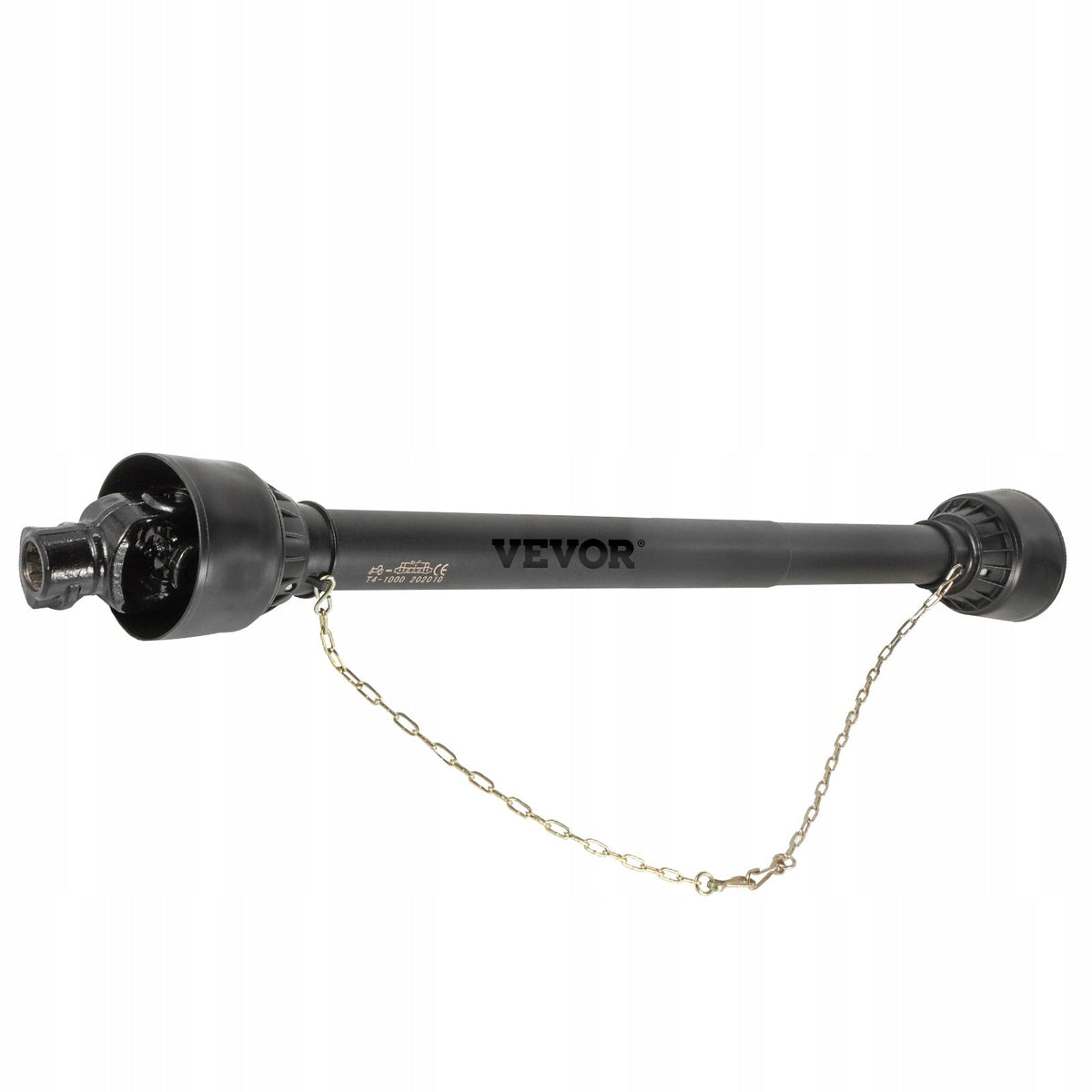

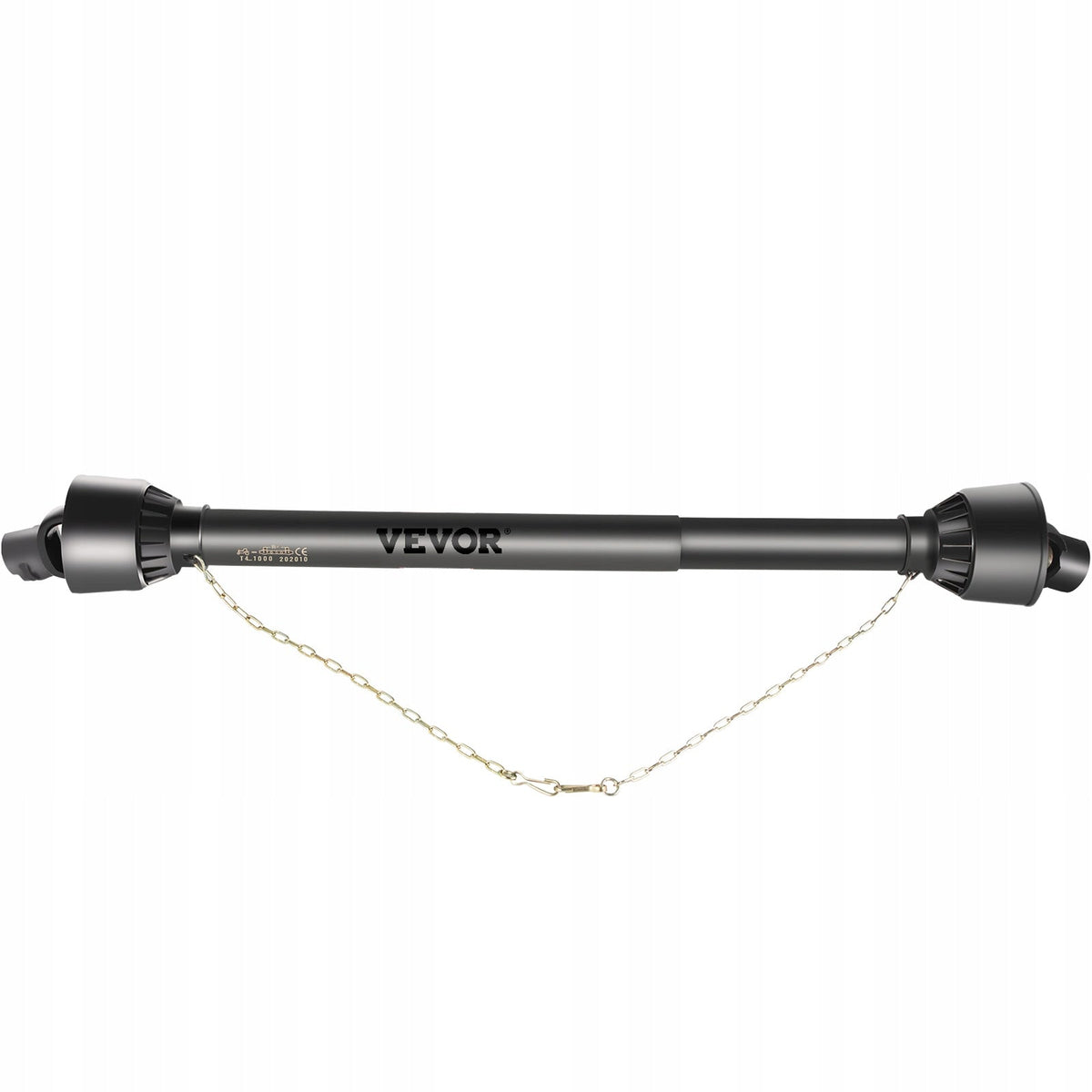

VEVOR PTO SHAFT 34.9 MM 1000-1400 MM SERIES 4 HEAVY DUTY

(0)
SKU:  R82807
43869zł
VEVOR PTO SHAFT 34.9 MM 1000-1400 MM SERIES 4 HEAVY DUTY
1 6
  • Material case-hardened 20CrMnTi steel + Q345 steel + plastic
  • Compressed Length 1000 mm (39 in)
  • Power at 540 revolutions/min 26 kW, torque 460 Nm
  • Color Black
  • Model T4-BⅢP*1000mm*4.05.05B*4.05.A35
View all specifications

Technical specifications
    • High durability.
    • Easy and quick installation with adjustable length.
    • Safe to use thanks to a protective cover and a safety chain

    All features

    • High durability.
    • Easy and quick installation with adjustable length.
    • Safe to use thanks to a protective cover and a safety chain
    • Universal application in agricultural machinery such as mowers, shredders, harrows or brushcutters

    Length Range: 1000 mm-1400 mm

    VEVOR PTO DRIVE SHAFT T4 1-3/8 X 6 SPLINE TELESCOPIC 43-61 HEAVY DUTY +57,08 zł 1100 mm-1550 mm
    VEVOR PTO SHAFT 34.9 MM 1000-1400 MM SERIES 4 HEAVY DUTY 1000 mm-1400 mm

    VEVOR PTO DRIVE SHAFT 34 9 MM 1000-1400 MM SERIES 4 HEAVY DUTY


    SET CONTENTS AND KEY FEATURES
    ✔️ 1 x PTO shaft
    ✔️ 1 x locking pin
    ✔️ 1 x user manual
    ✔️ Adjustable shaft length from 1000 mm to 1400 mm
    ✔️ Ends: 34.9 mm x 6-spline for tractor and round for implement

    PRODUCT ADVANTAGES


    ✔️ High strength due to the use of 20CrMnTi hardened steel and Q345 steel
    ✔️ High transmission power: 26 kW and 460 Nm at 540 rpm, and 39 kW and 360 Nm at 1000 rpm
    ✔️ Easy and quick installation with adjustable length
    ✔️ Safe use thanks to protective cover and safety chain
    ✔️ Universal application in agricultural machinery such as mowers, shredders, harrows, or brush cutters

    SPECIFICATION


    ✔️ Model: T4-BⅢP*1000mm*4.05.05B*4.05.A35
    ✔️ Series: 4
    ✔️ Material: 20CrMnTi carburized steel + Q345 steel + plastic
    ✔️ Tractor end: 1-3/8 inch (34.9 mm) x 6 splines
    ✔️ Implement end: 1-3/8 inch (34.9 mm) x round end

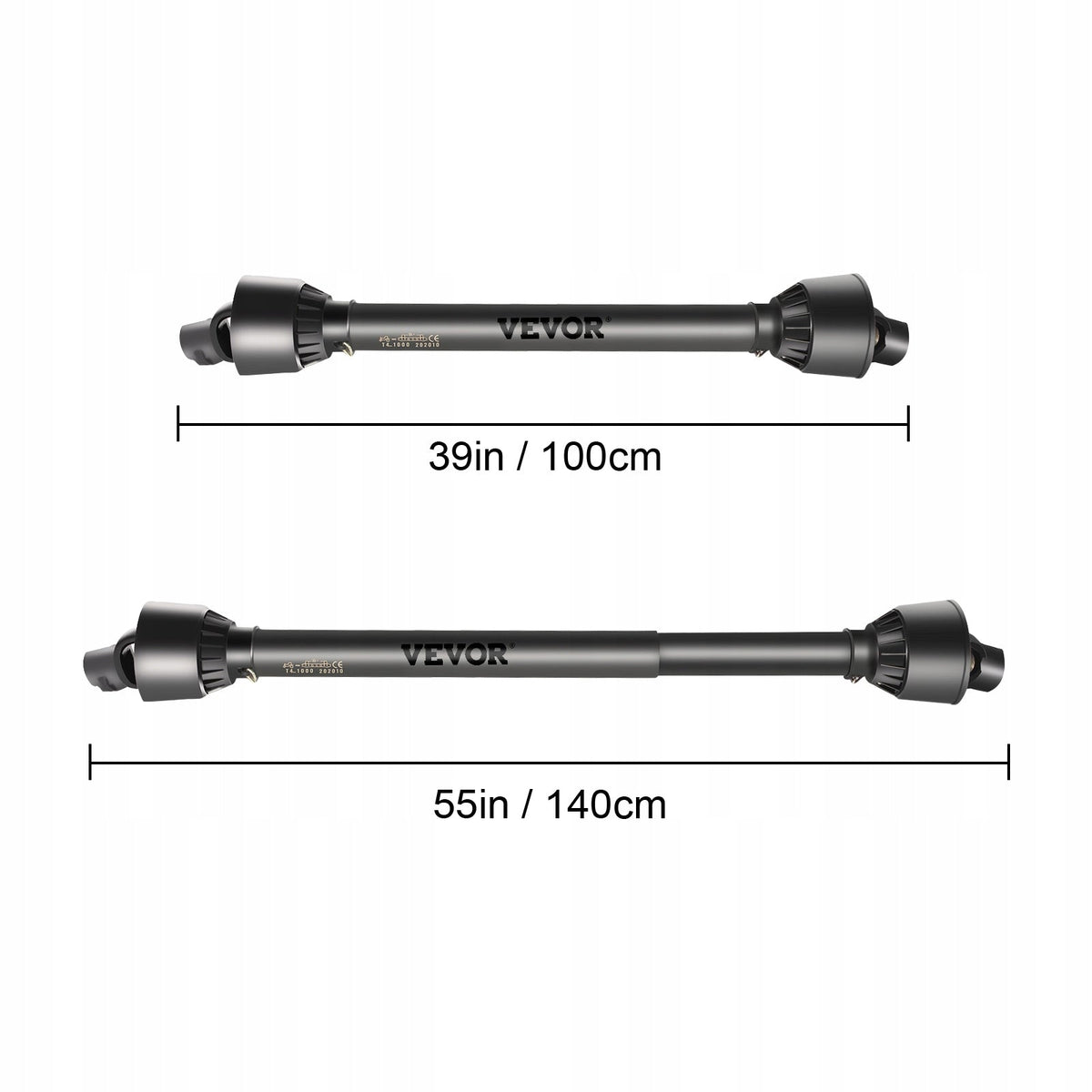

    ✔️ Compressed length: 1000 mm (39 inches)
    ✔️ Overall extended length: 1400 mm (55 inches)
    ✔️ Power at 540 rpm: 26 kW, torque 460 Nm
    ✔️ Power at 1000 rpm: 39 kW, torque 360 Nm
    ✔️ Color: black

    STRUCTURE AND DESIGN

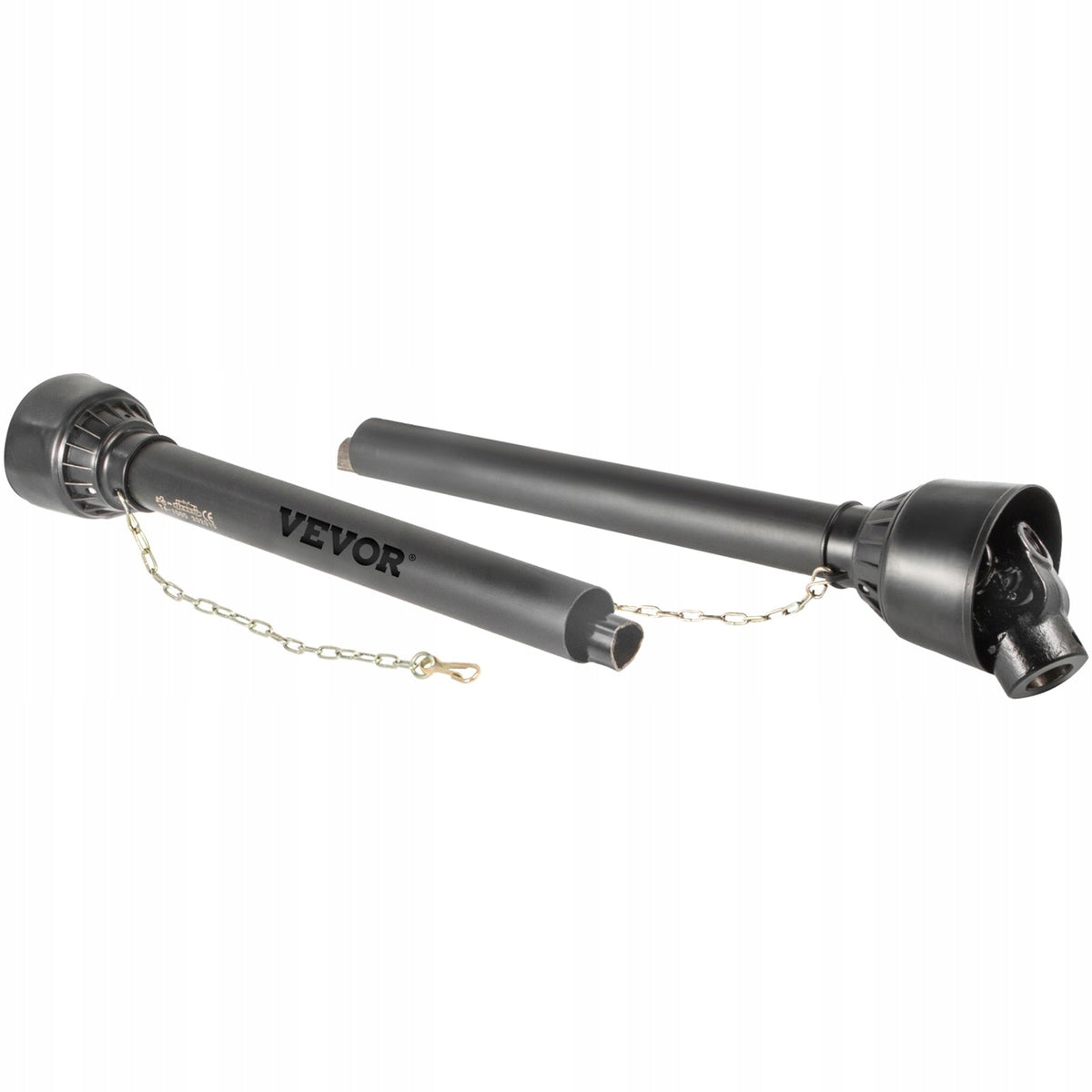

    ✔️ Compact design with telescopic tube, universal joint, yokes, plastic shield, and safety chain
    ✔️ Designed for two-speed operation at both ends

    APPLICATION


    ✔️ Designed for agricultural machinery and PTO-driven equipment, such as lawnmowers, wood chippers, rotary harrows, brush cutters, and others

    CALL TO PURCHASE


    Choose the robust and durable VEVOR universal-telescopic shaft, which will ensure reliable operation of your agricultural machinery. Thanks to its adjustable length and high transmission power, you will increase work efficiency and user safety. Order today and enjoy professional equipment!
    • Brand Horizon Dev Aktualny
    • SKU R82807
    • EAN 840281506590
    • Technical specifications
    • Model T4-BⅢP*1000mm*4.05.05B*4.05.A35
    • Series 4
    • Material case-hardened 20CrMnTi steel + Q345 steel + plastic
    • Tractor End 1-3/8 in (34,9 mm) x 6 splines
    • Implement End 1-3/8 in (34,9 mm) x round end
    • Compressed Length 1000 mm (39 in)
    • Extended Overall Length 1400 mm (55 in)
    • Power at 540 revolutions/min 26 kW, torque 460 Nm
    • Power at 1000 revolutions/min 39 kW, torque 360 Nm
    • Color Black
