VEVOR 3-JAW LATHE CHUCK K11-250 250MM SELF-CENTERING STRONG HT300
Regular price
68723zł
- Chuck Diameter 250 mm (10")
- Material HT300, 20Cr steel (hardness 53HRC), 40Cr steel (hardness 45HRC)
- Weight approximately 22,3 kg (49,16 lbs)
- Product dimensions φ252 x 190 mm
- Clamping range 6-250 mm (0,24-9,84")
- Made of high-quality HT300 material and high-hardness 20Cr and 40Cr alloy steel (53HRC and 45HRC)
- Hardened for increased rust resistance and durability

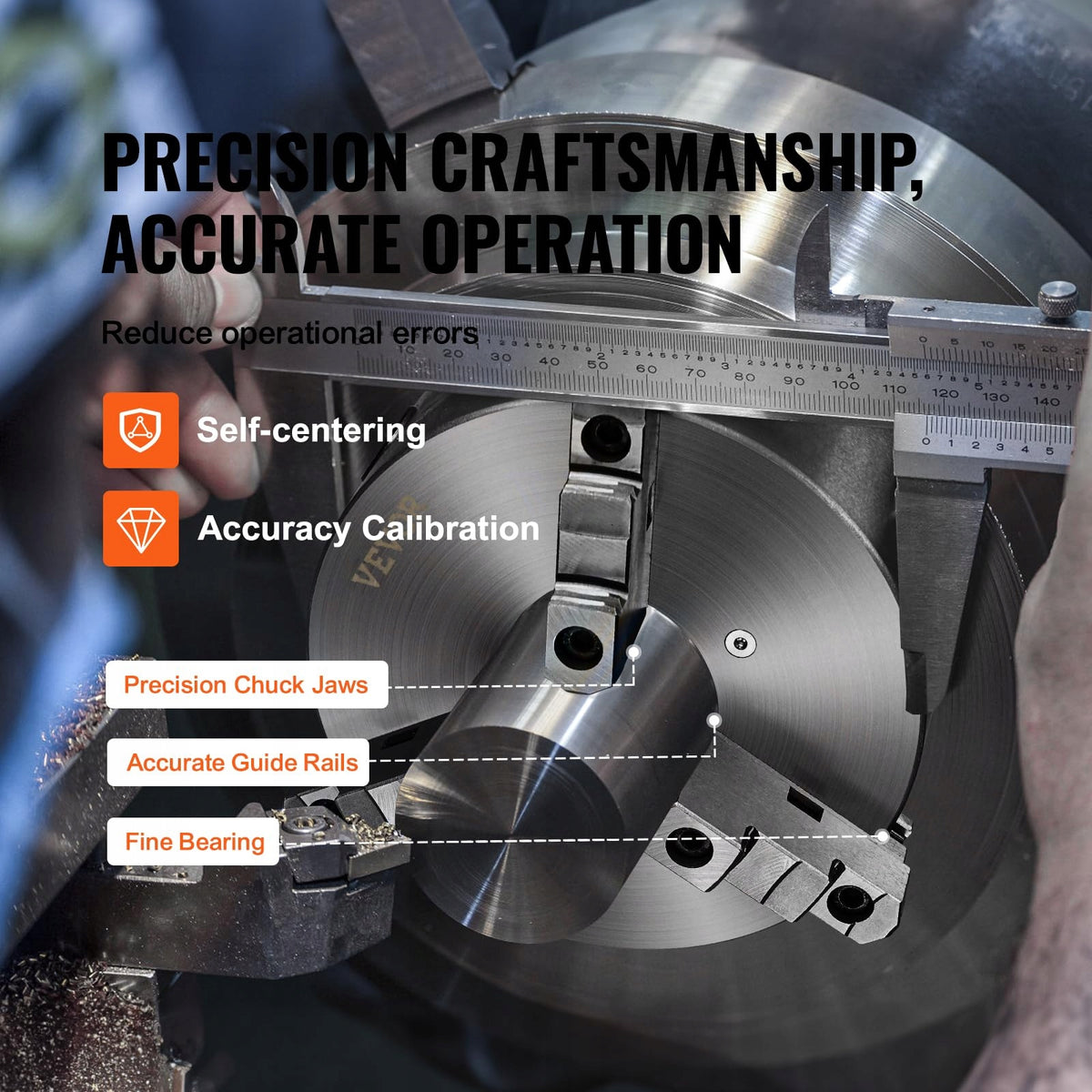

- Self-centering mechanism with precise bevel gear and three gears ensures stability and machining accuracy
VEVOR LATHE CHUCK 3-JAW K11-250 250MM SELF-CENTERING STRONG HT300
Kit contents and product specification

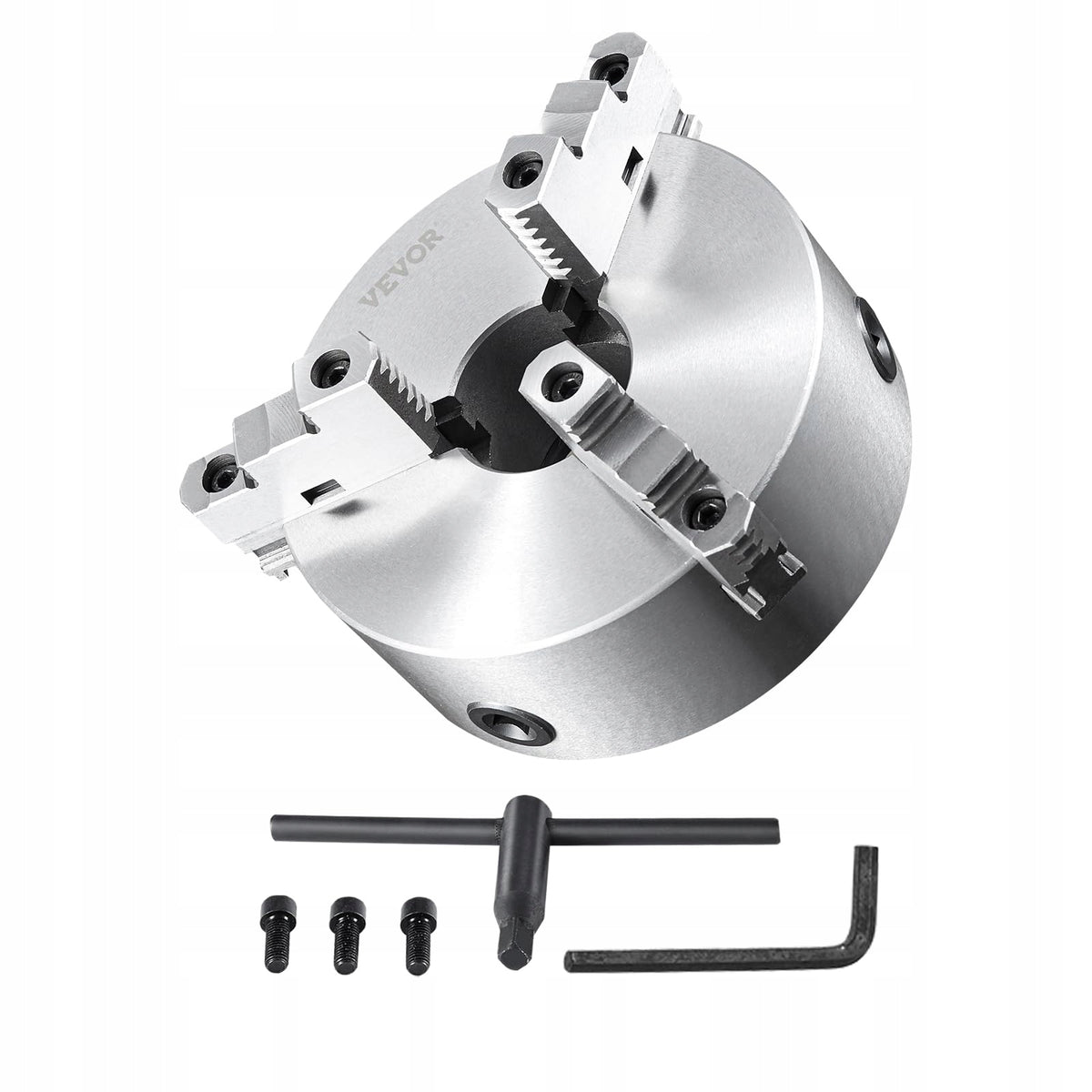

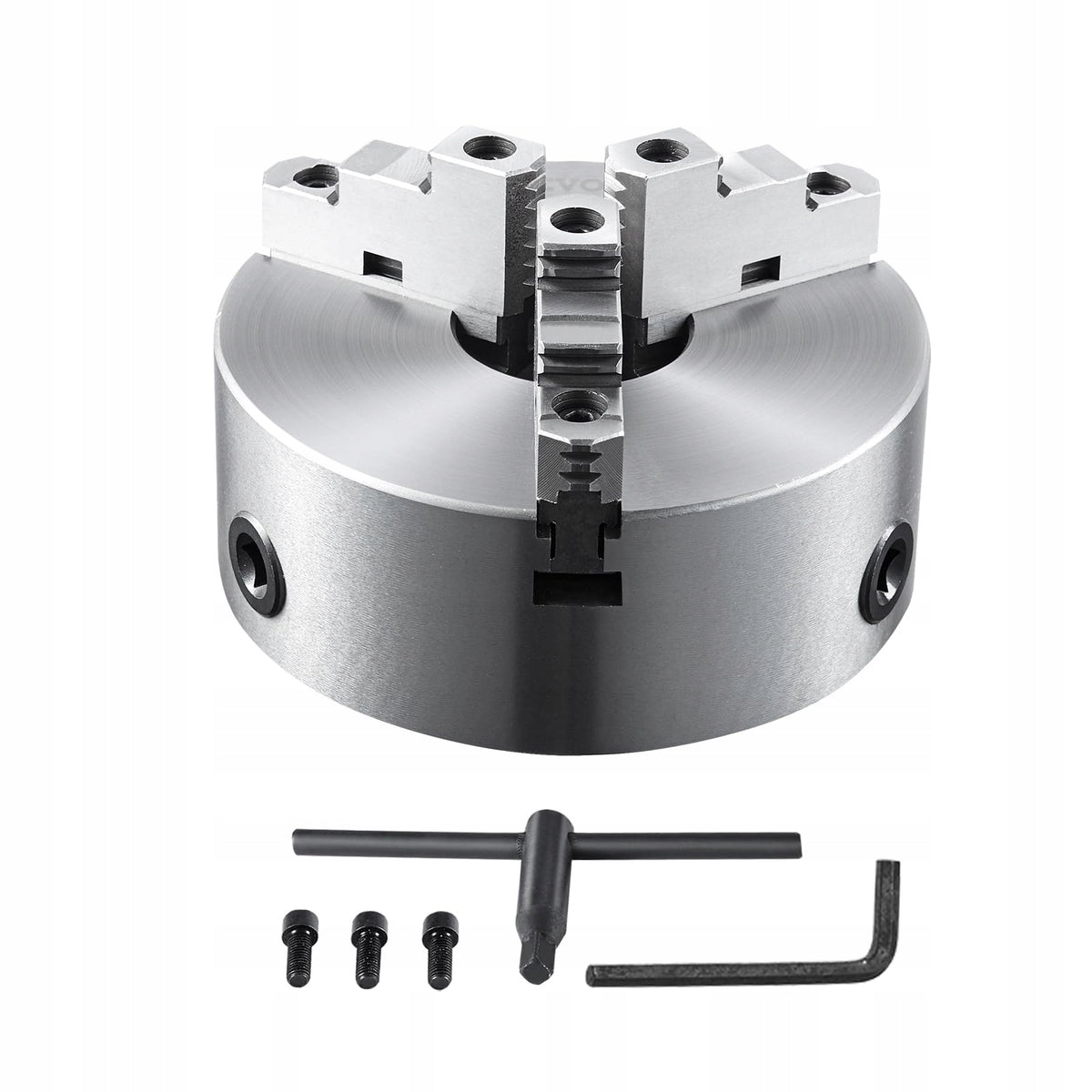

✔️ 3-jaw lathe chuck with a diameter of 250 mm
✔️ Clamping range from 6 to 250 mm (0.24-9.84")
✔️ Includes a T-wrench, 3 mounting bolts, an hex key, and an instruction manual
Product advantages

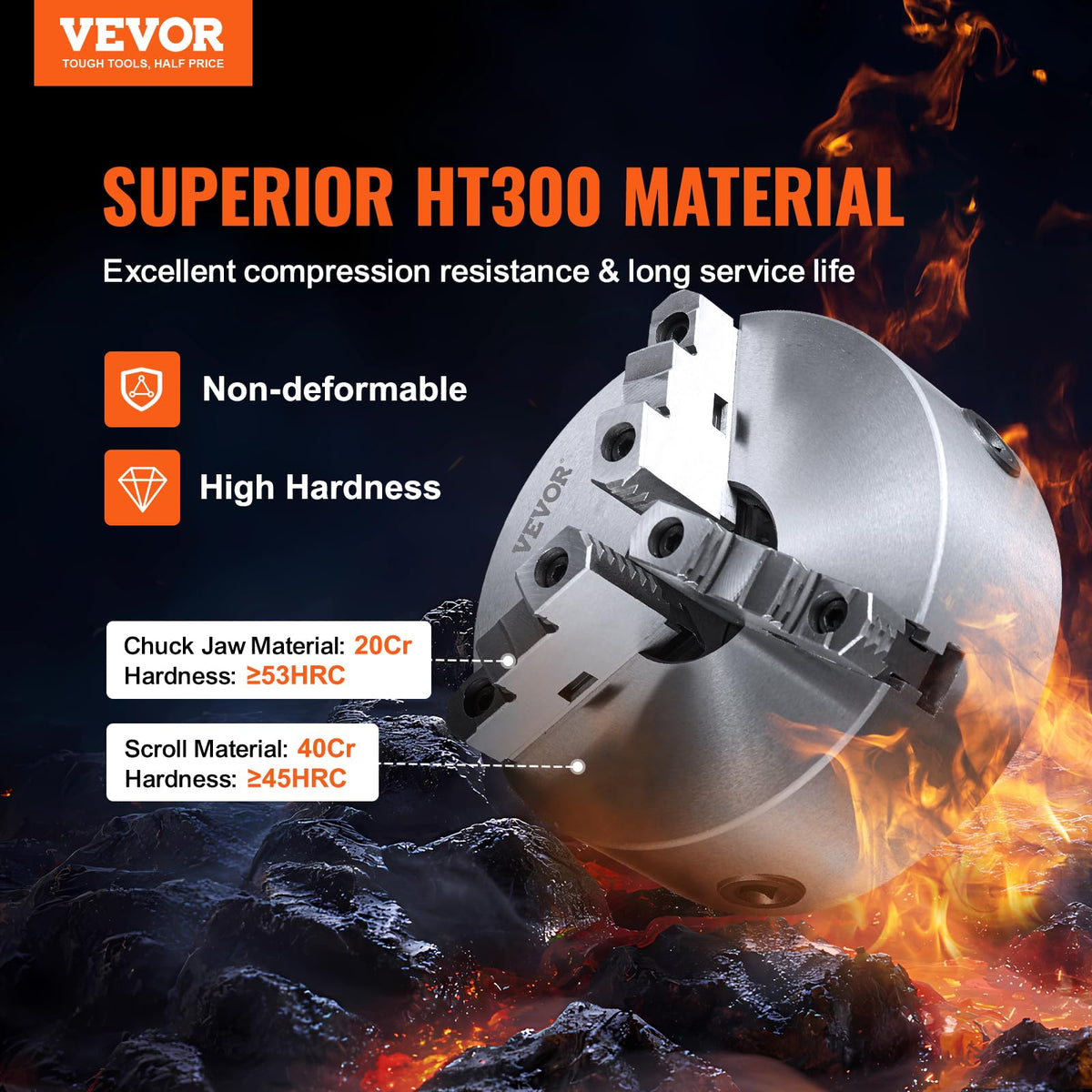

✔️ Made of high-quality HT300 material and 20Cr and 40Cr alloy steel with high hardness (53HRC and 45HRC)
✔️ Hardened to increase rust resistance and durability
✔️ Self-centering mechanism with precise bevel gear and three gears ensures stability and machining accuracy
✔️ Dual-purpose jaws – can clamp elements both internally and externally
✔️ Simple and compact design for easy operation without the need for frequent calibration
✔️ Universal application for various lathes, 3D printers, machining centers, milling machines, and drills
SPECIFICATIONS
✔️ Chuck diameter: 250 mm (10")
✔️ Clamping range: 6-250 mm (0.24-9.84")
✔️ Material: HT300, 20Cr steel (hardness 53HRC), 40Cr steel (hardness 45HRC)
✔️ Bearing tolerance: ≤0.05 mm
✔️ Weight: approximately 22.3 kg (49.16 lbs)
✔️ Hole diameter: 80 mm
✔️ Oil-coated surface, roughness Ra <0.8
✔️ Product dimensions: φ252 x 190 mm
✔️ Model: K11-250
Order today and increase the precision of your machining
Benefit from the robust and precise VEVOR lathe chuck, which will facilitate your work and ensure stable clamping of various elements. An ideal choice for professionals and hobbyists who care about the quality and reliability of their tools.
- Brand VEVOR
- SKU R81244
- Technical specifications
