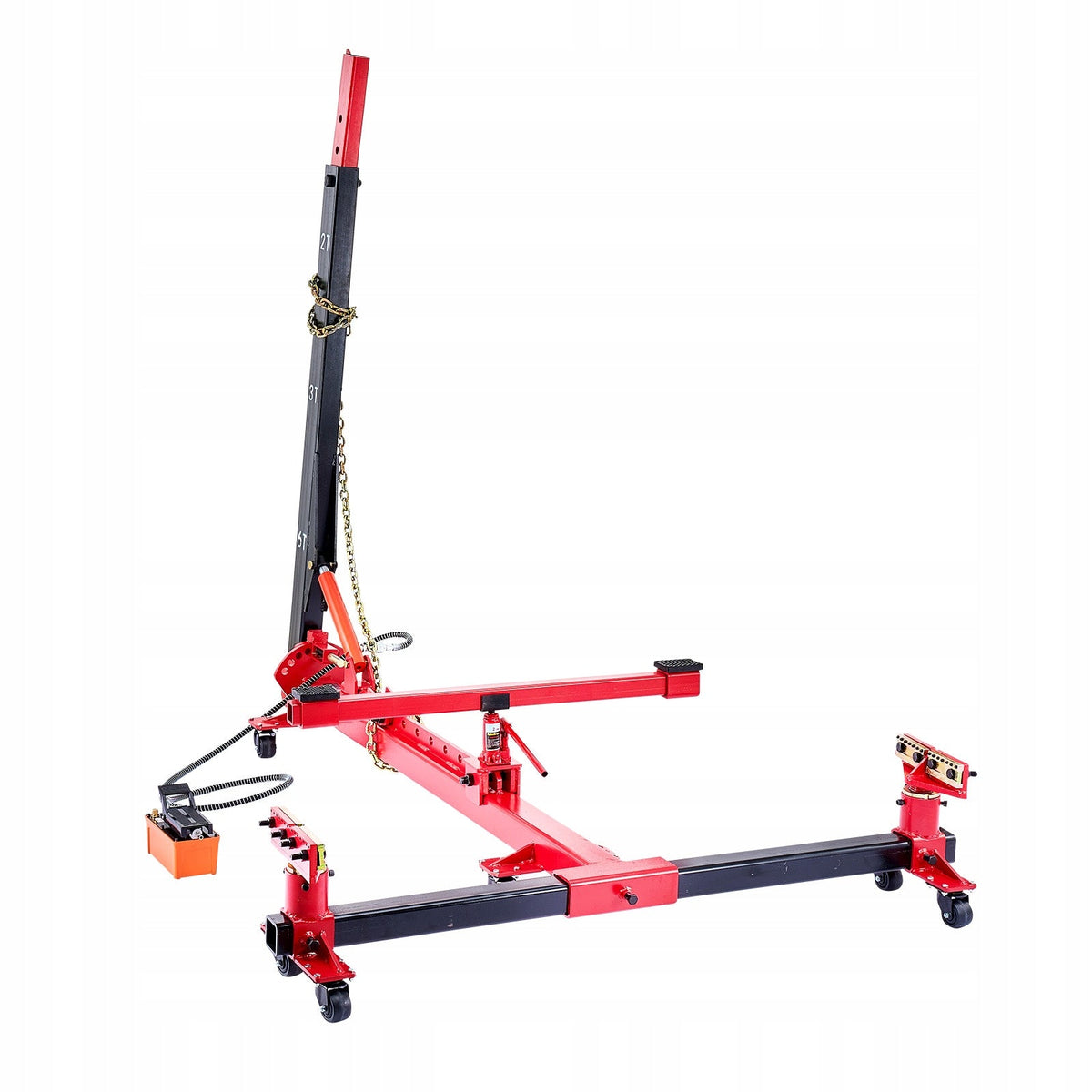

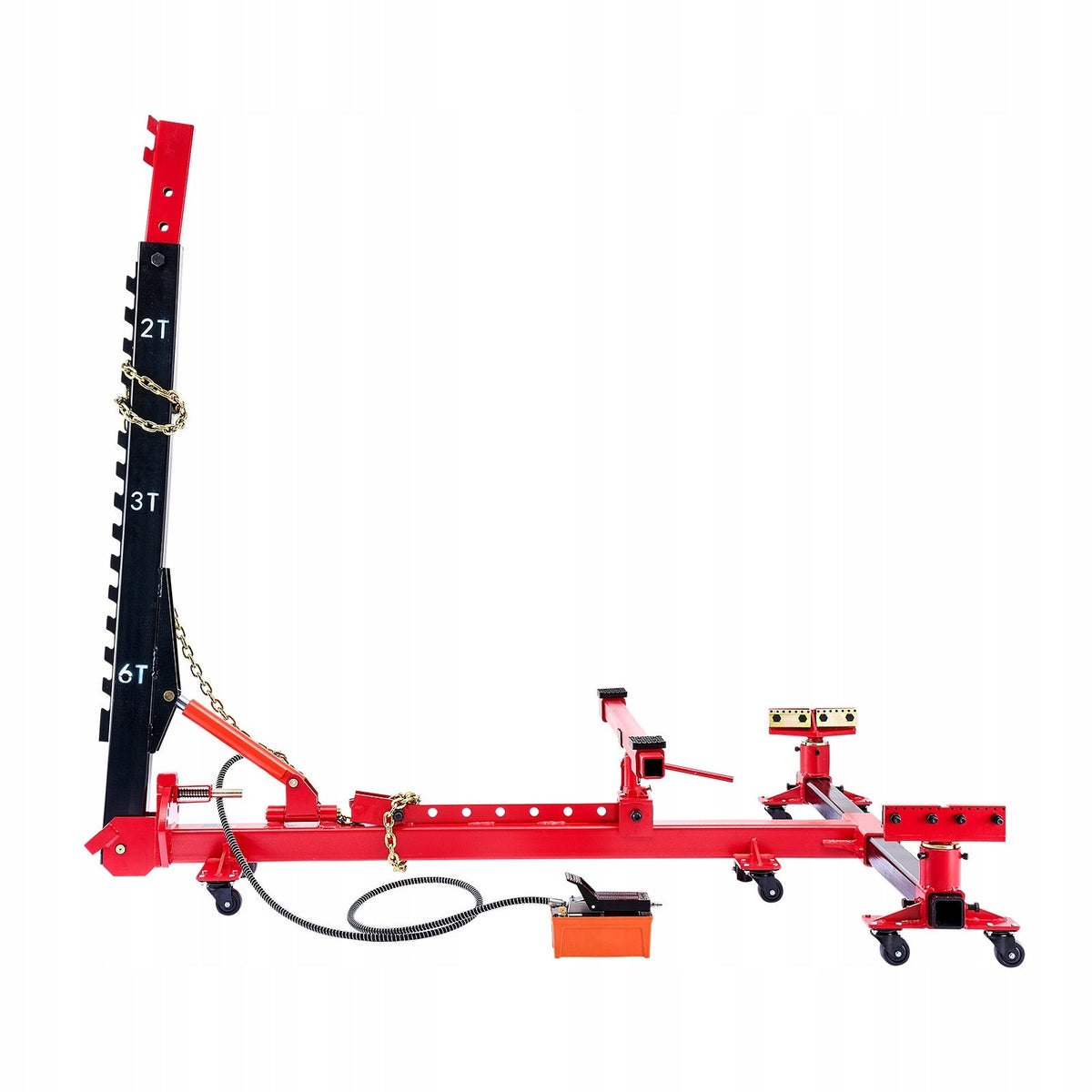

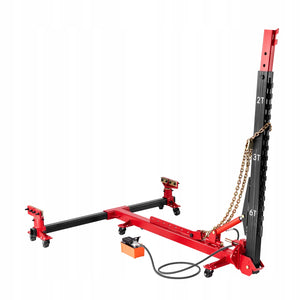

PROFESSIONAL VEVOR 6T CAR BODY FRAME PULLING AND STRAIGHTENING MACHINE
Regular price
892355zł
- Required Air Pressure 0,6–1 MPa
- Net weight 306 kg (674,6 lbs) including accessories

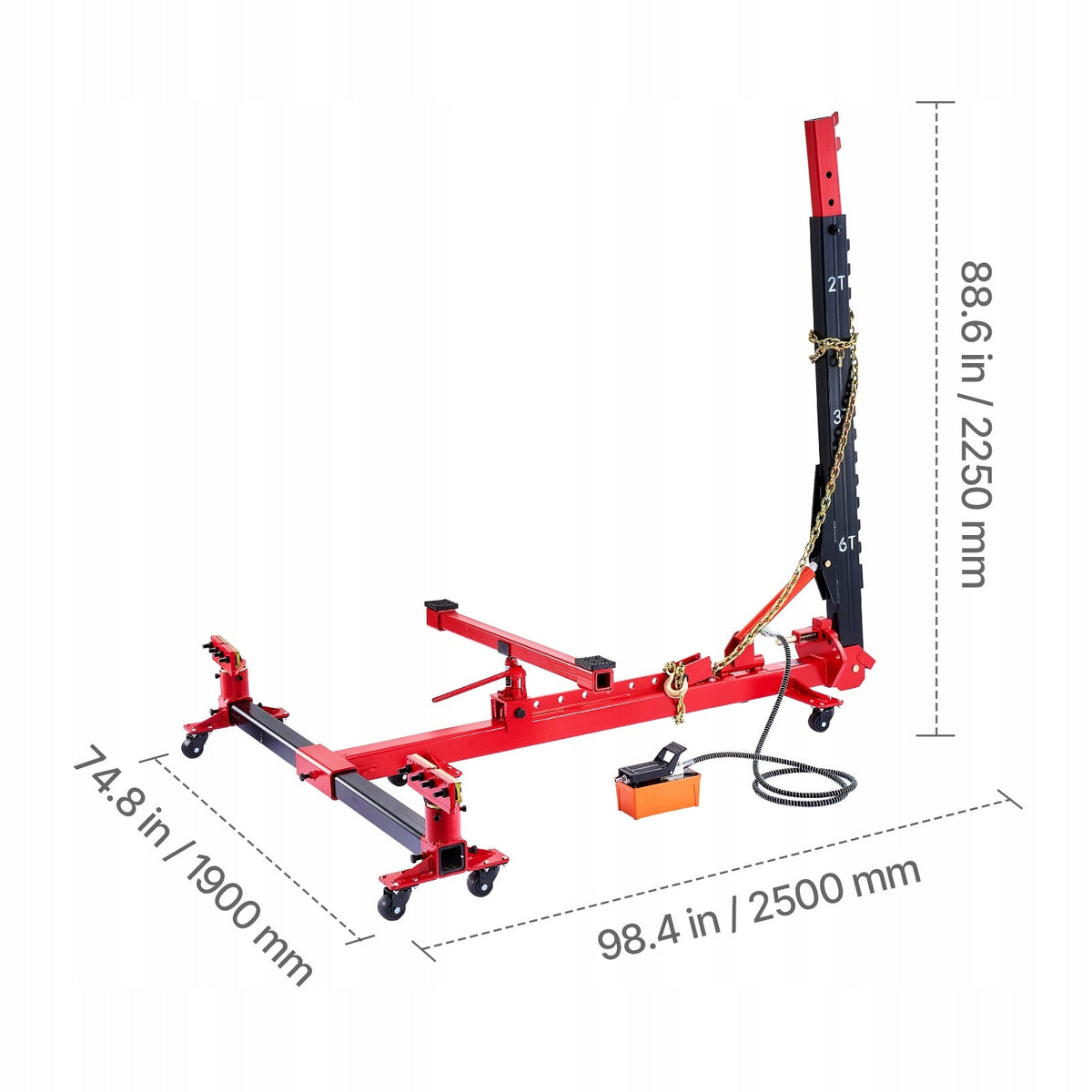

- Product dimensions 2500 x 1900 x 2250 mm (98,4 x 74,8 x 88,6 in)
- Chain Length 118 in (3 m) and 39 in (1 m)
- Model JT-20
- The post, which can be rotated from -60° to +60° and tilted up to 35°, allows for forward, backward, left, and right positioning.
- A 3-ton capacity air bag jack ensures frame lifting and smooth lowering.
- The 16-piece tool kit includes body clamps; a two-way pull clamp and locking jaws stabilize the attachment.
Airbag Jack: With Airbag Jack
VEVOR PROFESSIONAL 6T CAR BODY FRAME PULLING AND STRAIGHTENING MACHINE

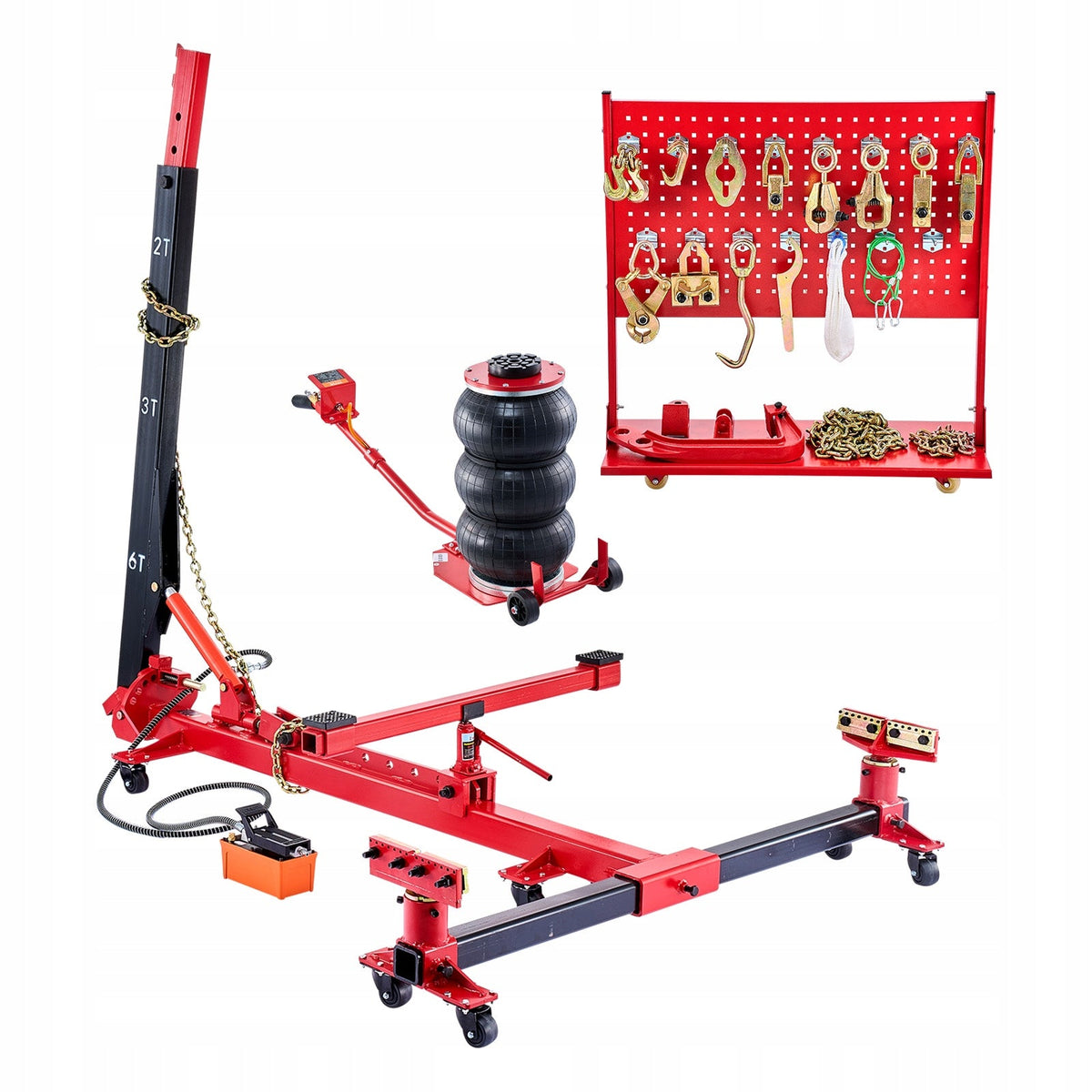

KIT CONTENTS AND BASIC ELEMENTS
✔️ 1 x body frame puller/straightener
✔️ 1 x 3-point airbag jack
✔️ 1 x 118-inch (3 m) chain
✔️ 1 x 39-inch (1 m) chain
✔️ 1 x 16-piece straightening tool set

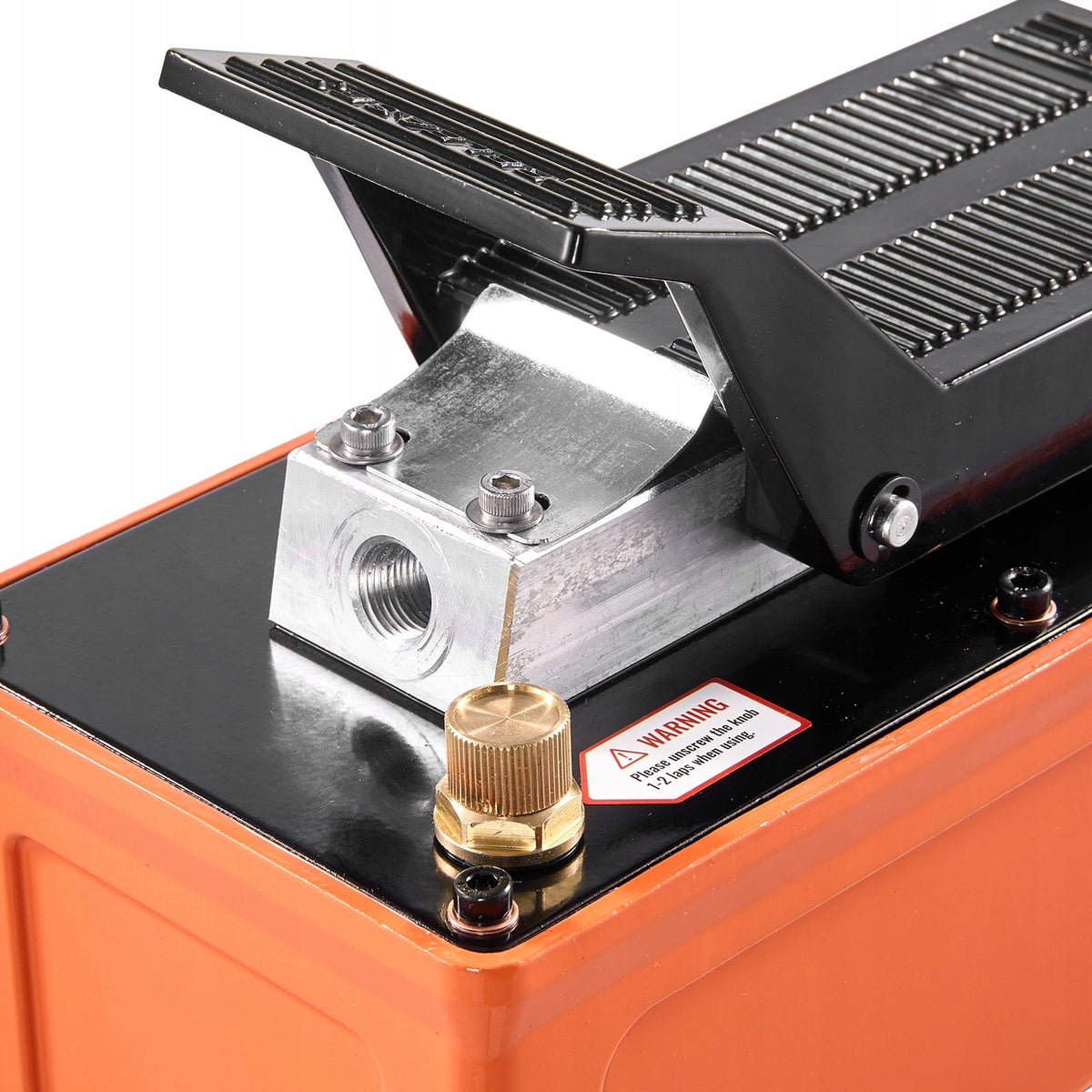

✔️ 1 x hydraulic pump
✔️ 1 x 5/16" 3m hydraulic hose with connectors
✔️ 1 x US type pneumatic quick connector
✔️ 1 x European type pneumatic quick connector
✔️ User manual
ADVANTAGES OF THE DEVICE
✔️ Up to 6-ton pulling force – enables effective straightening and repair of body frame damage in vehicles after accidents.
✔️ Flexible, adjustable post – rotatable from -60° to +60° and tiltable up to 35°, allowing precise adjustment to repair needs.
✔️ 3-ton airbag jack – provides quick and stable frame lifting with smooth lowering.
✔️ 16-piece straightening tool set – includes body clamps and other essential tools for body repair.
✔️ Robust and reliable construction – equipped with a 45 MPa (6000 psi) hydraulic pump and 8 durable wheels for easy maneuvering of the device under the vehicle.
✔️ Strong straightening – high-strength chain and hook with anti-breakage protection guarantee safe and efficient operation.
✔️ Multi-angle adjustment – allows the post to be positioned forward, backward, left, and right, increasing the range of applications.
✔️ High clamping force – double-head screw clamp and locking jaws ensure stability during straightening.

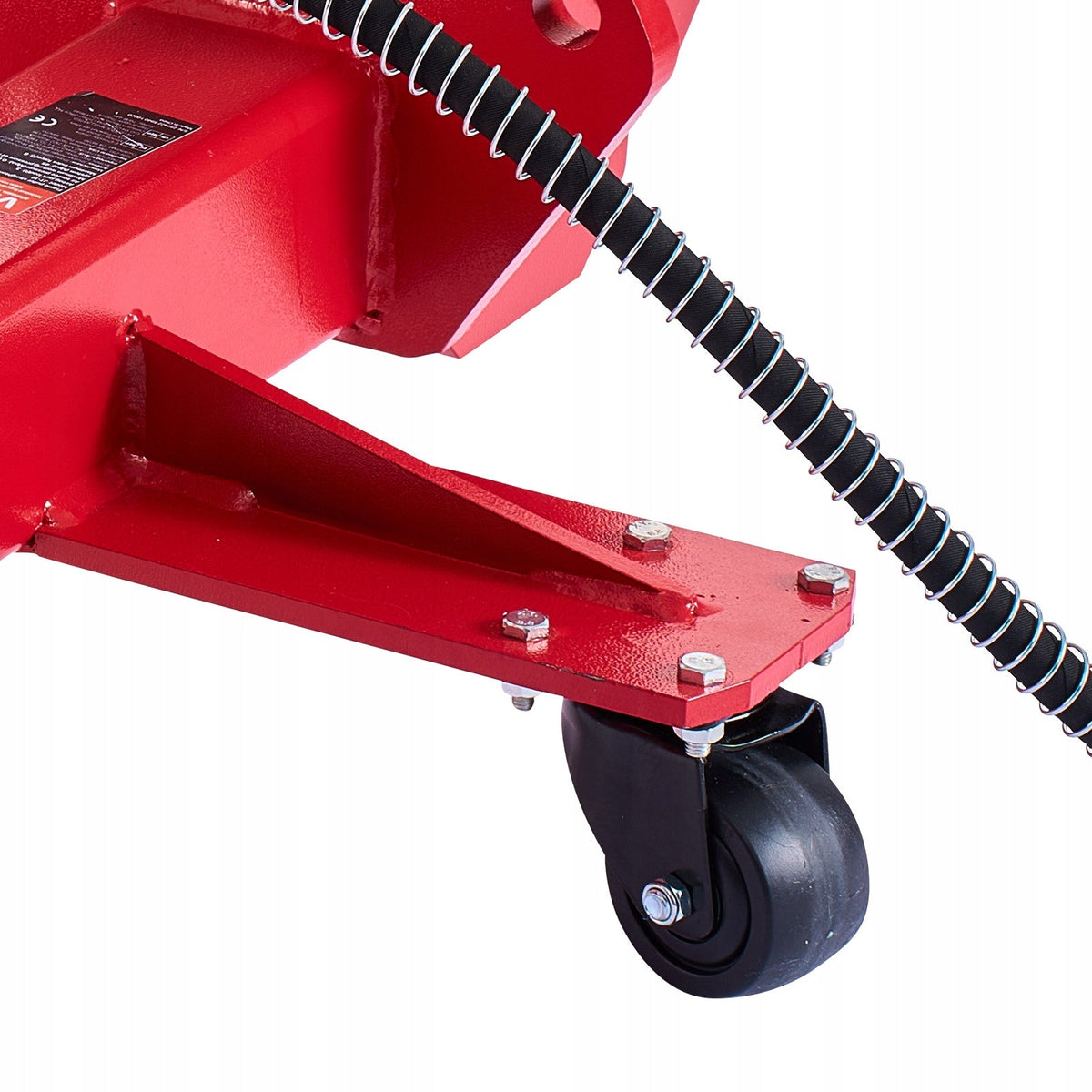

✔️ Easy mobility – 8 swivel wheels allow free movement of the device under various vehicles.
✔️ Wide application – suitable for repairing sedans, SUVs, pickups, and other types of vehicles.
SPECIFICATION
✔️ Model: JT-20
✔️ Pulling force: 6 tons
✔️ Required air pressure: 0.6–1 MPa
✔️ Net weight: 306 kg (674.6 lbs) including accessories
✔️ Product dimensions: 2500 x 1900 x 2250 mm (98.4 x 74.8 x 88.6 inches)
✔️ Airbag dimensions: 340 x 250 x 450 mm (13.4 x 9.8 x 17.7 inches)
✔️ Chain length: 118 inches (3 m) and 39 inches (1 m)
BUY NOW AND CONTRIBUTE TO QUICK AND EFFECTIVE BODY REPAIR
With this professional body frame pulling and straightening machine, you can quickly restore your vehicle to perfect condition. Check its capabilities and make your workshop work easier.
- Brand VEVOR
- SKU R86642
- Technical specifications
