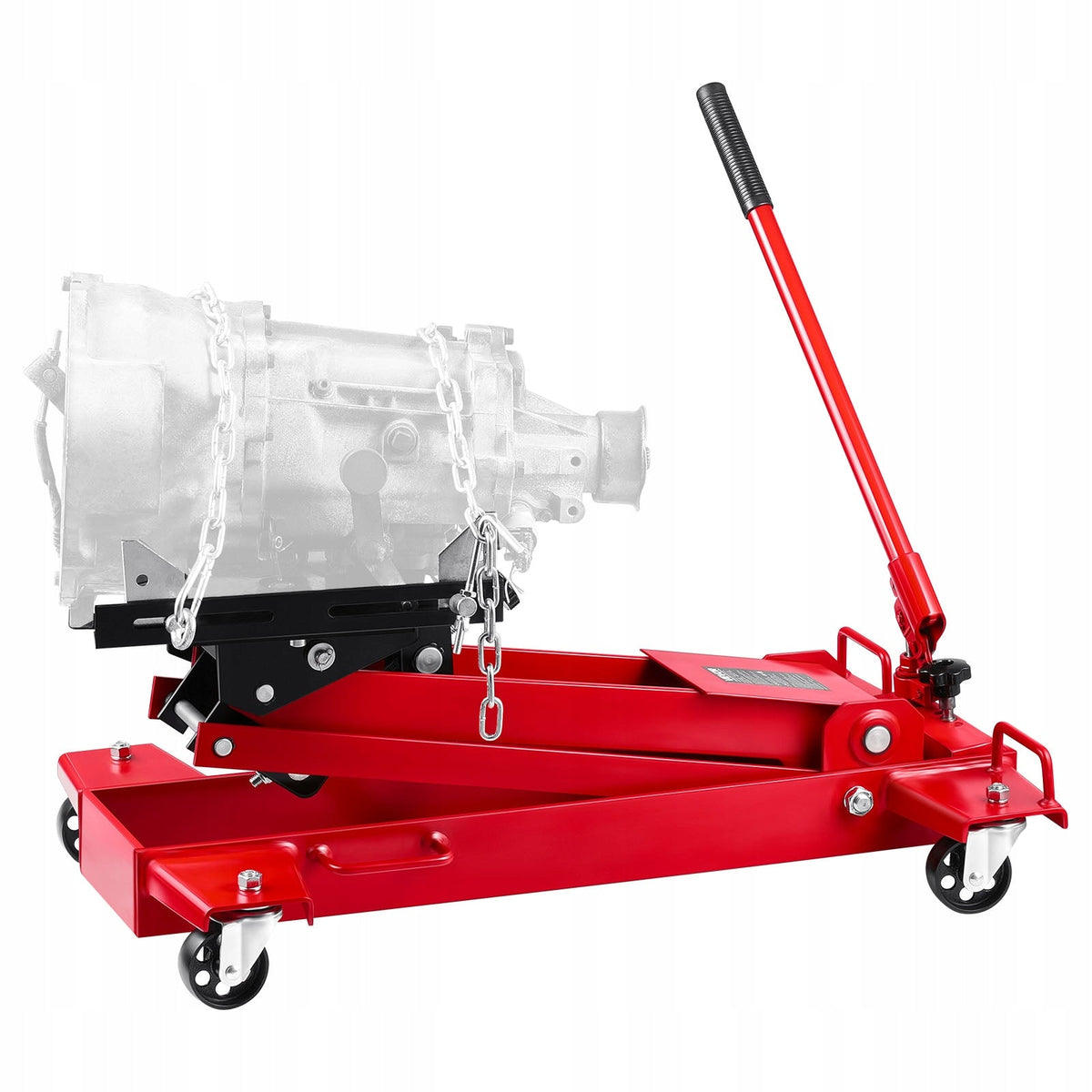

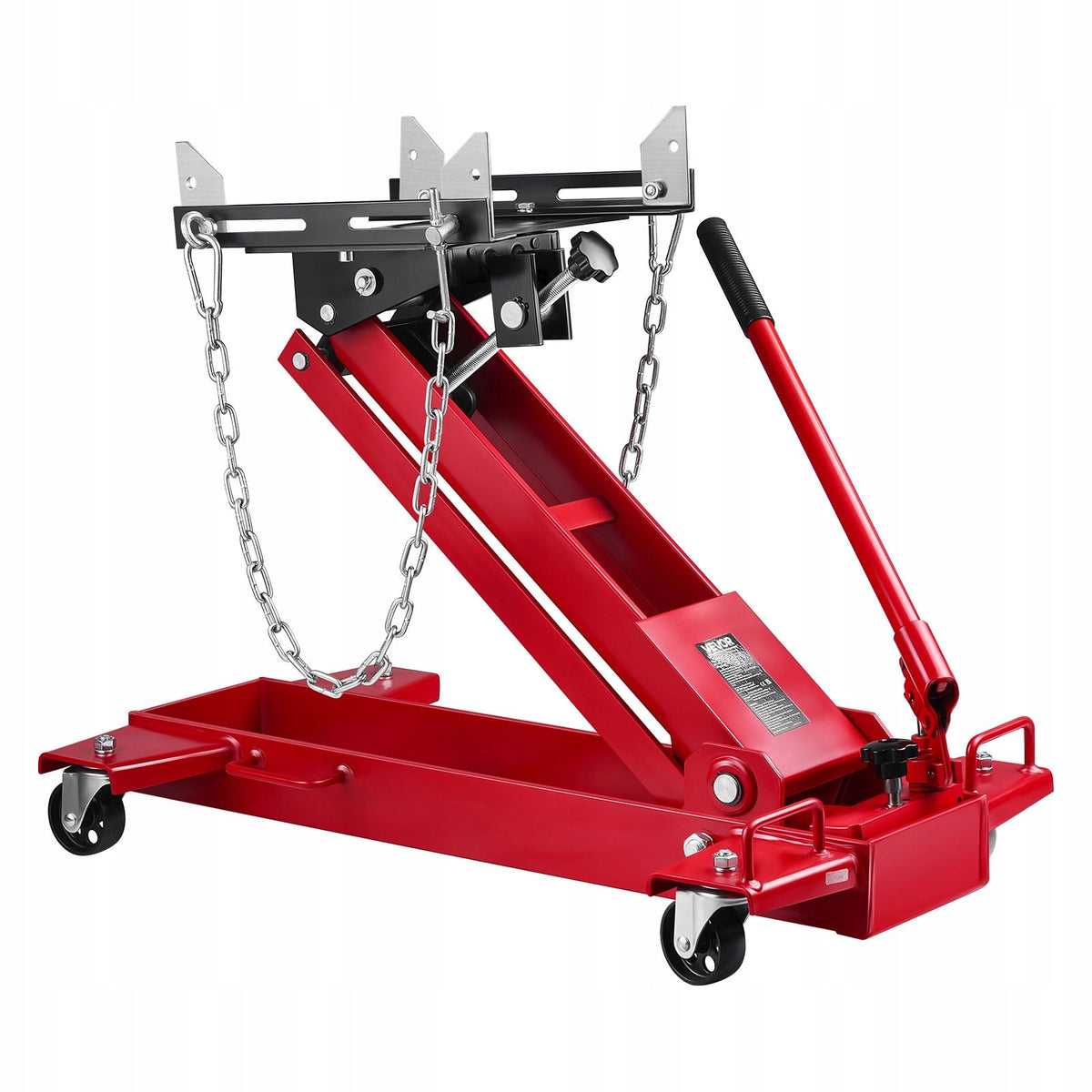

VEVOR 1T HYDRAULIC LOW PROFILE CAR JACK WITH CAST IRON WHEELS
Regular price
203458zł
- Load capacity 1000 kg (2200 lbs)
- Frame material steel Q235B
- Net weight 51,9 kg (114,4 lbs)
- Dimensions 850 x 490 x 285 mm (33,5 x 19,3 x 11,2 in)
- Model YSQ-A-100
- For working with gearboxes and drive shafts.
- Allows sliding under vehicles with low ground clearance.
- Adjustable tray – rotates 360°, with tilt capability up to 30° and adjustable width, allowing for precise positioning of the lifted component.
VEVOR HYDRAULIC 1T LOW PROFILE CAR LIFT WITH CAST IRON WHEELS
KIT CONTENTS AND KEY FEATURES
✔️ 1 x main unit
✔️ 2 x chain assemblies
✔️ 1 x steering wheel
✔️ 2 x M10 hex socket head screws
✔️ 2 x M10 nuts
✔️ 1 x User Manual
PRODUCT FEATURES
✔️ 1-ton (2200 lbs) lifting capacity – the jack is made of Q235B steel, designed for heavy components such as gearboxes and drive shafts.
✔️ Low profile – minimum support height of 185 mm allows easy insertion under low-clearance vehicles.

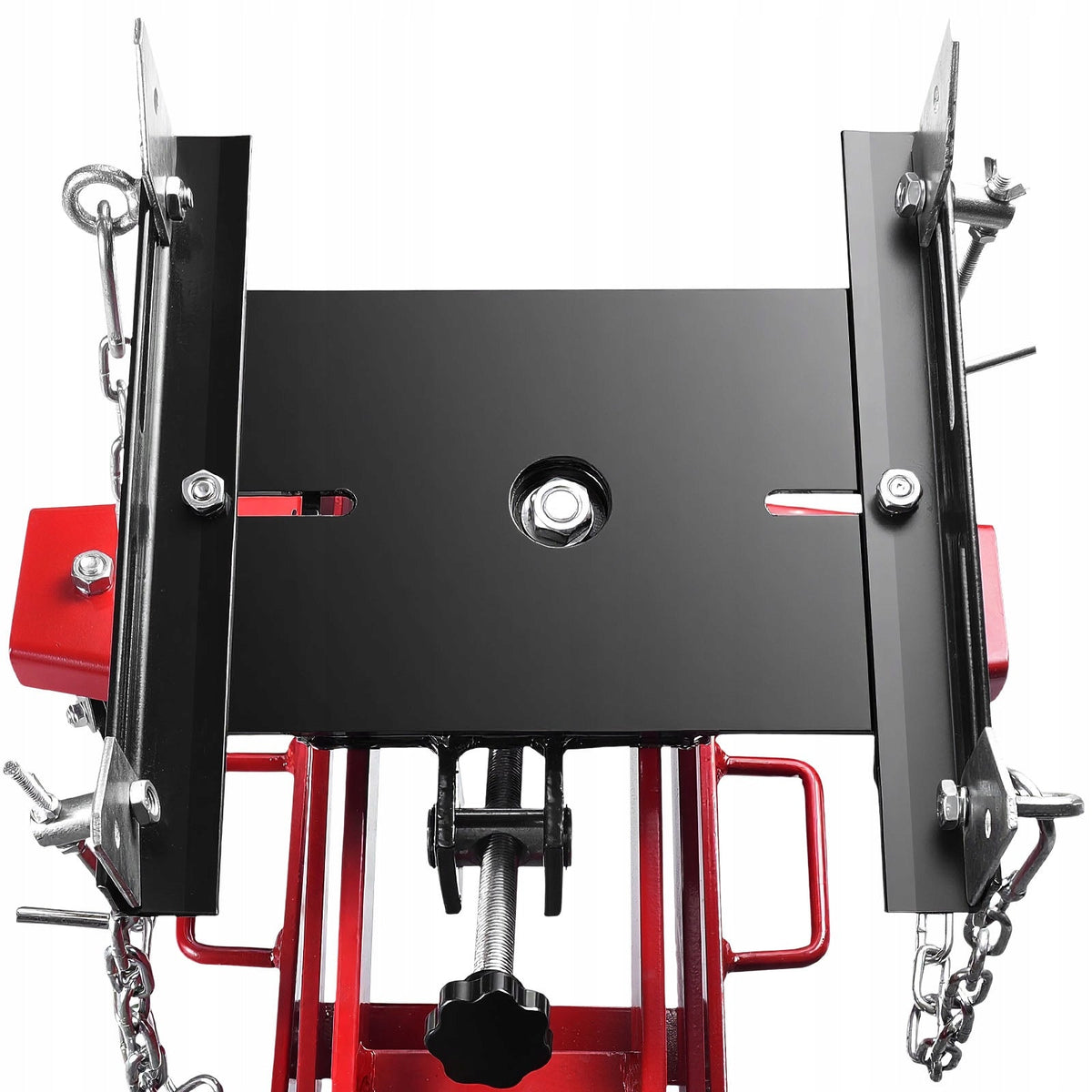

✔️ Adjustable tray – rotates 360°, can tilt up to 30° and adjust in width, allowing precise positioning of the lifted component.
✔️ Efficient hydraulic system – ensures smooth and stable lifting, equipped with a check valve for safe lowering.
✔️ 360° mobility – four large-diameter cast iron wheels ensure easy and stable movement of the jack in tight spaces.
ADVANTAGES OF THE VEVOR LIFT
✔️ Robust steel construction – steel lifting arm ensures strength and reliability during operation.

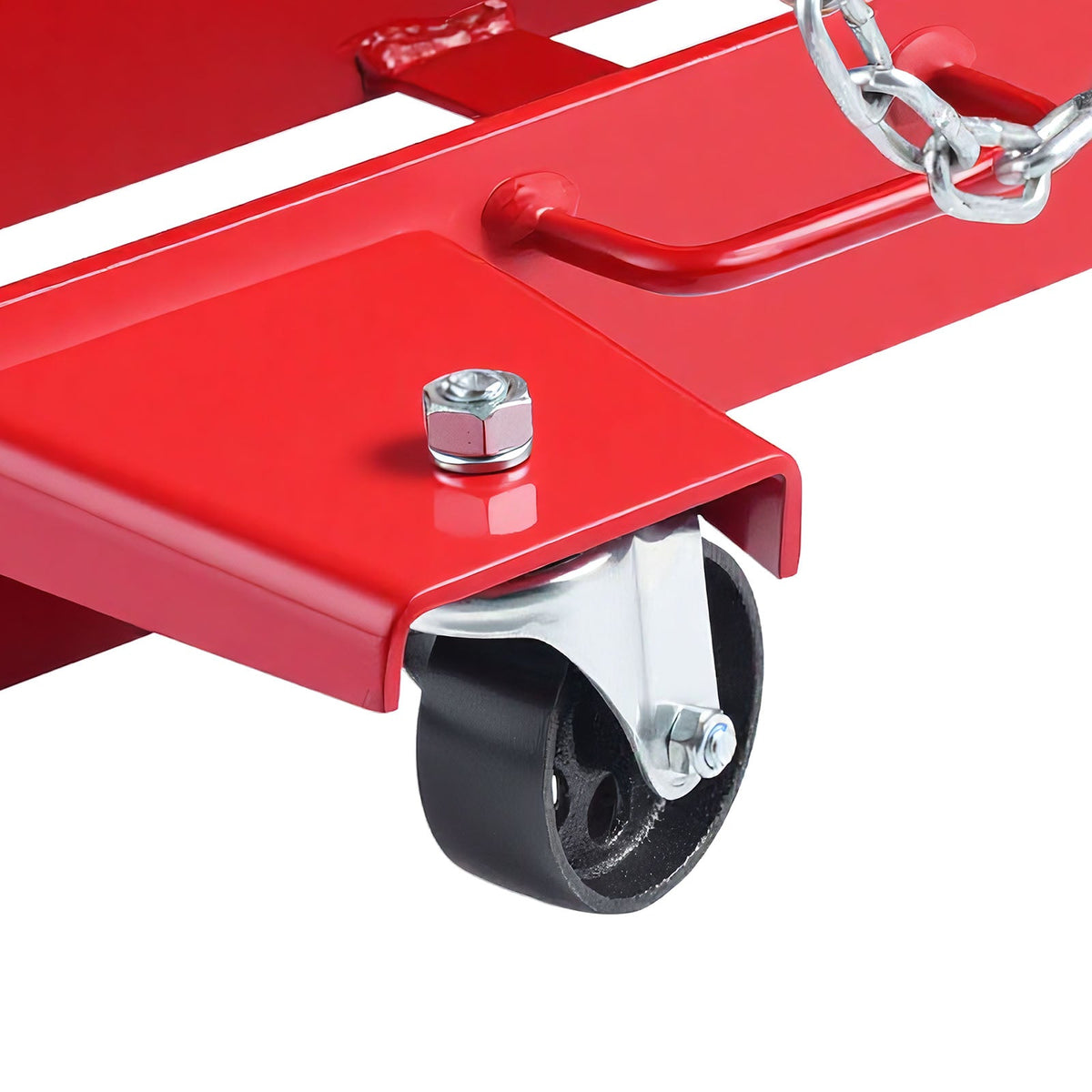

✔️ Professional cast iron wheels – crack-resistant and durable, allow stable movement even under heavy load.
✔️ Easy operation and maintenance – recommended lubrication of moving parts before and after use for longer lifespan.
✔️ Safe use – the lift should be used on hard, level surfaces, and the vehicle should be supported with jack stands.
SPECIFICATION
✔️ Model: YSQ-A-100
✔️ Type: hydraulic low profile jack
✔️ Load capacity: 1000 kg (2200 lbs)
✔️ Transport capacity: 500 kg (1100 lbs)
✔️ Single piston

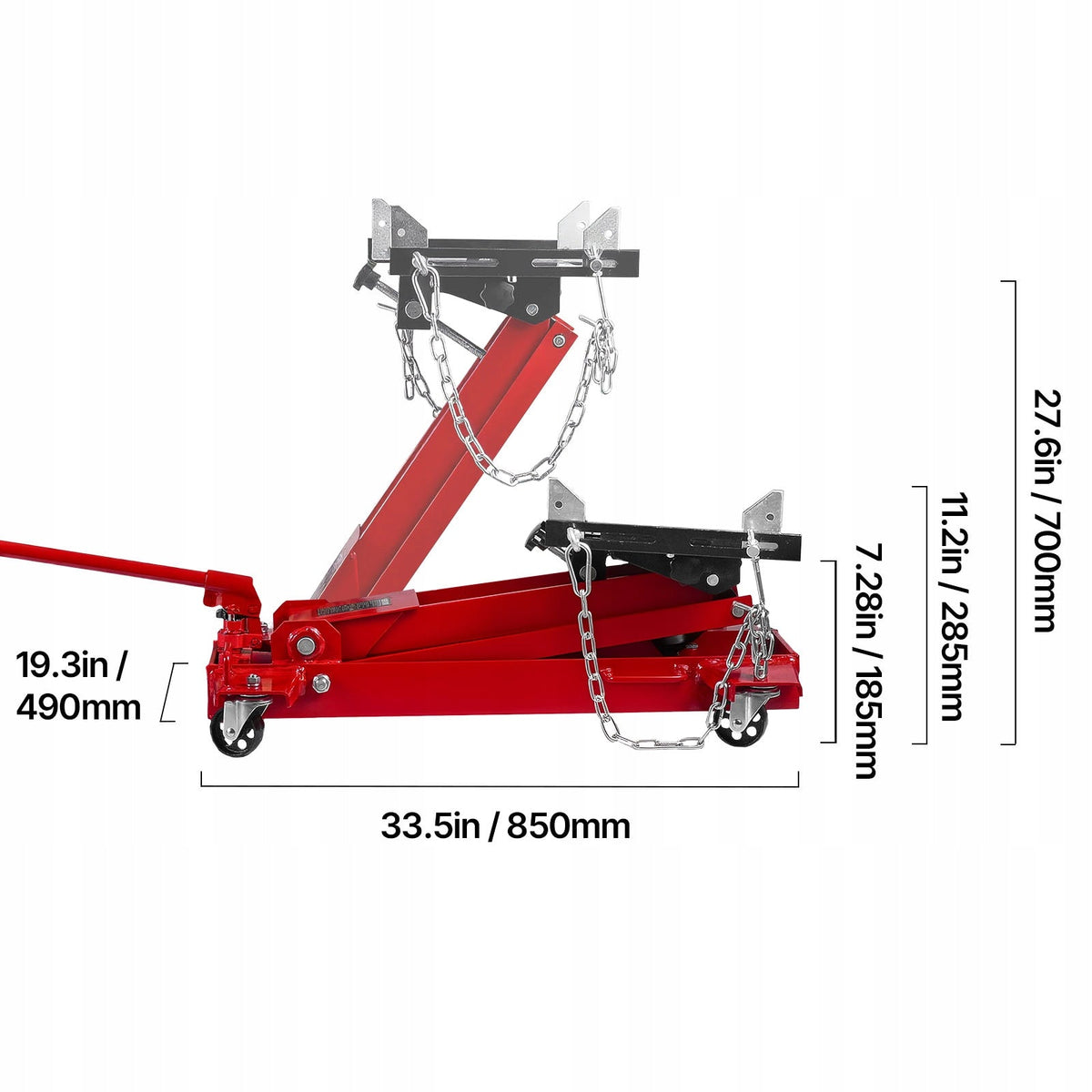

✔️ Minimum support height: 185 mm (7.28 inches)
✔️ Maximum support height: 700 mm (27.6 inches)
✔️ Frame material: Q235B steel
✔️ Net weight: 51.9 kg (114.4 lbs)
✔️ Dimensions: 850 x 490 x 285 mm (33.5 x 19.3 x 11.2 inches)
WE INVITE YOU TO PURCHASE
Choose the VEVOR lift if you need a sturdy, efficient, and easy-to-use tool for working with car gearboxes and other heavy components. With its low-profile design and mobile wheels, work will become simpler and more comfortable.
- Brand VEVOR
- SKU R82528
- Technical specifications
