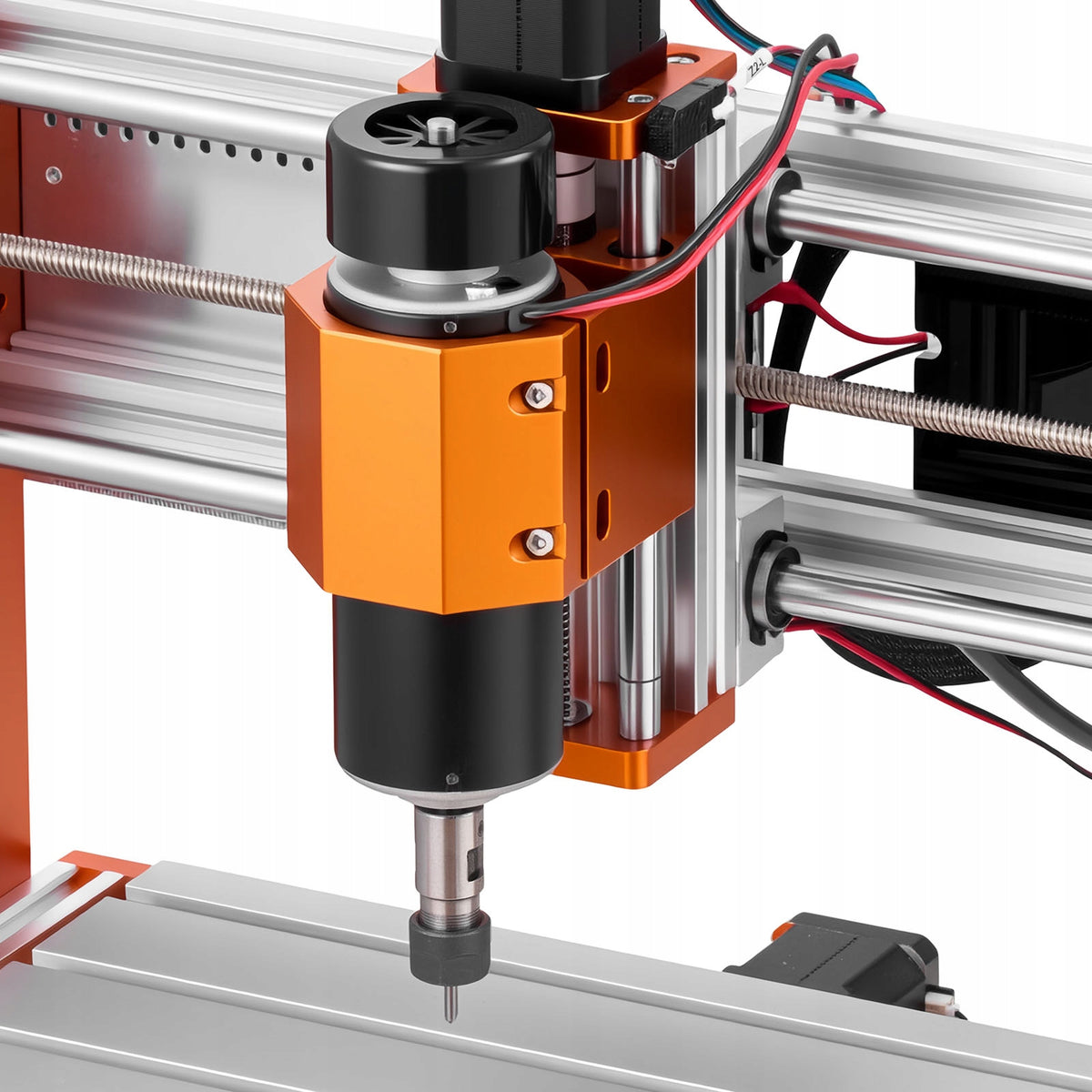

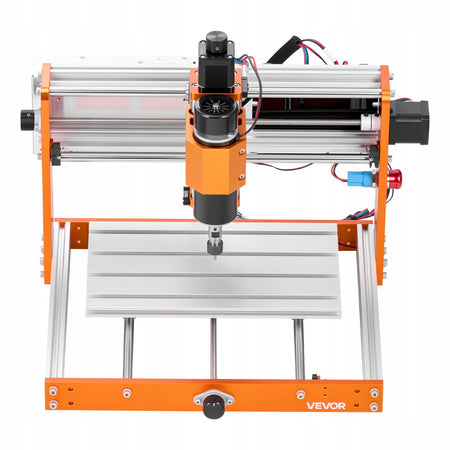

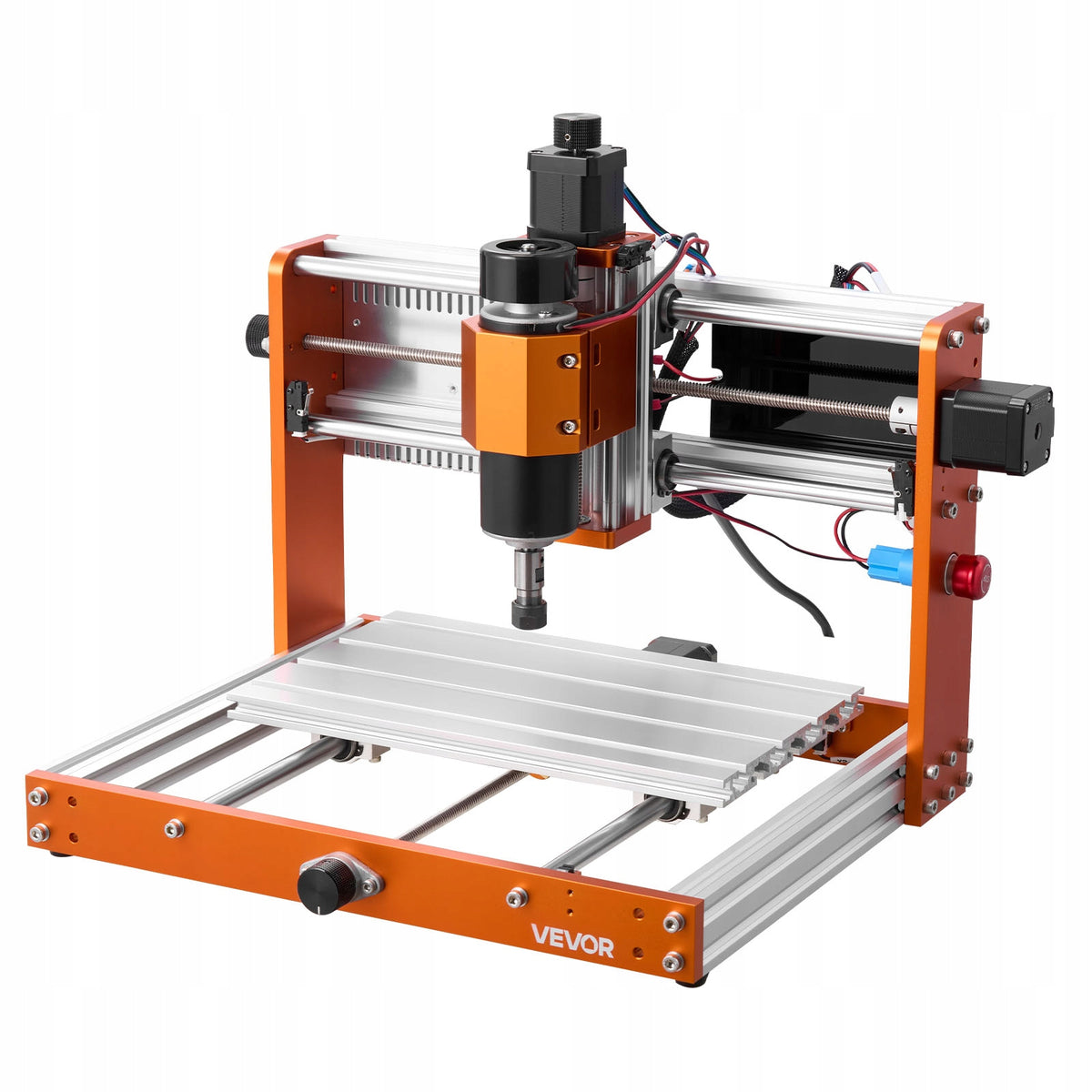

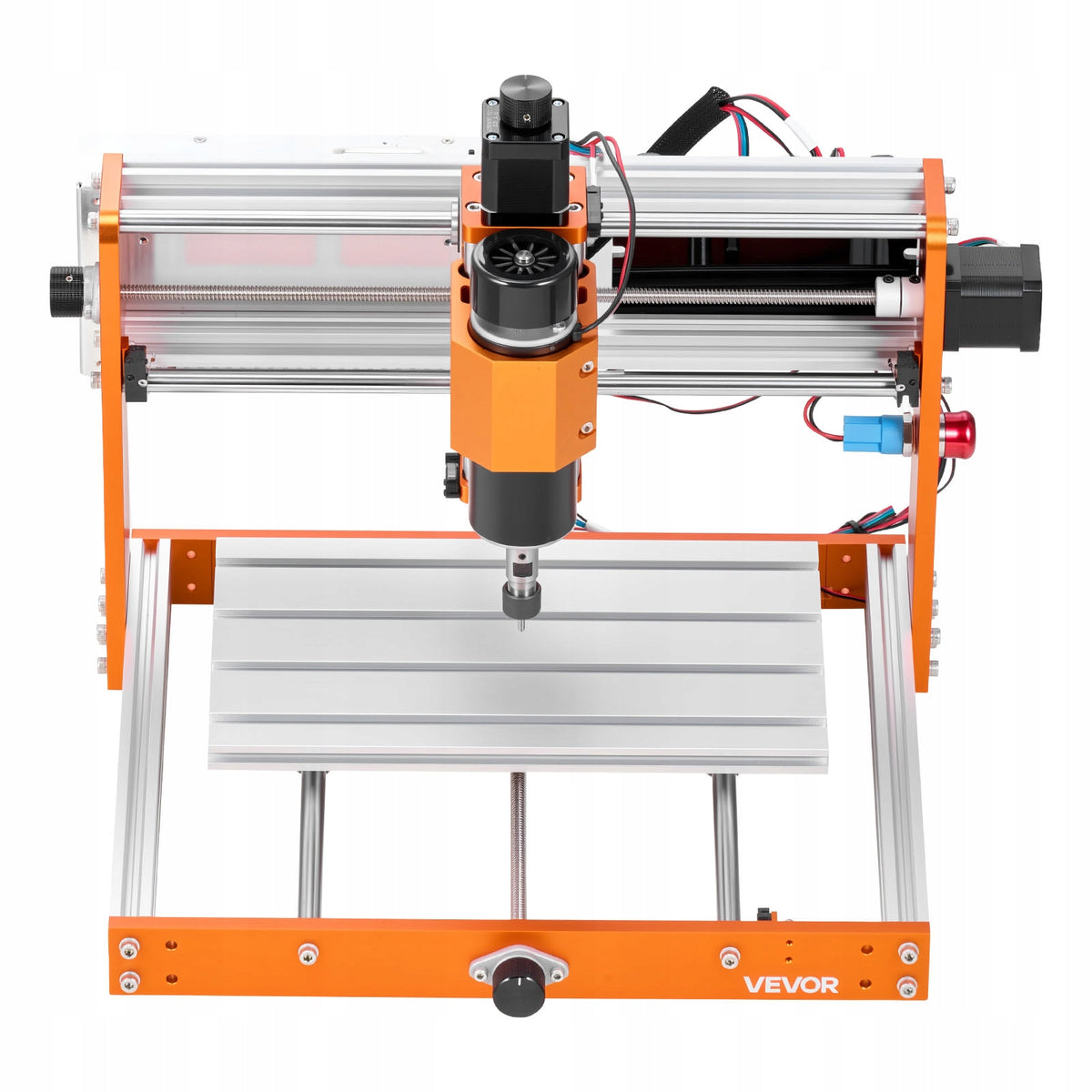

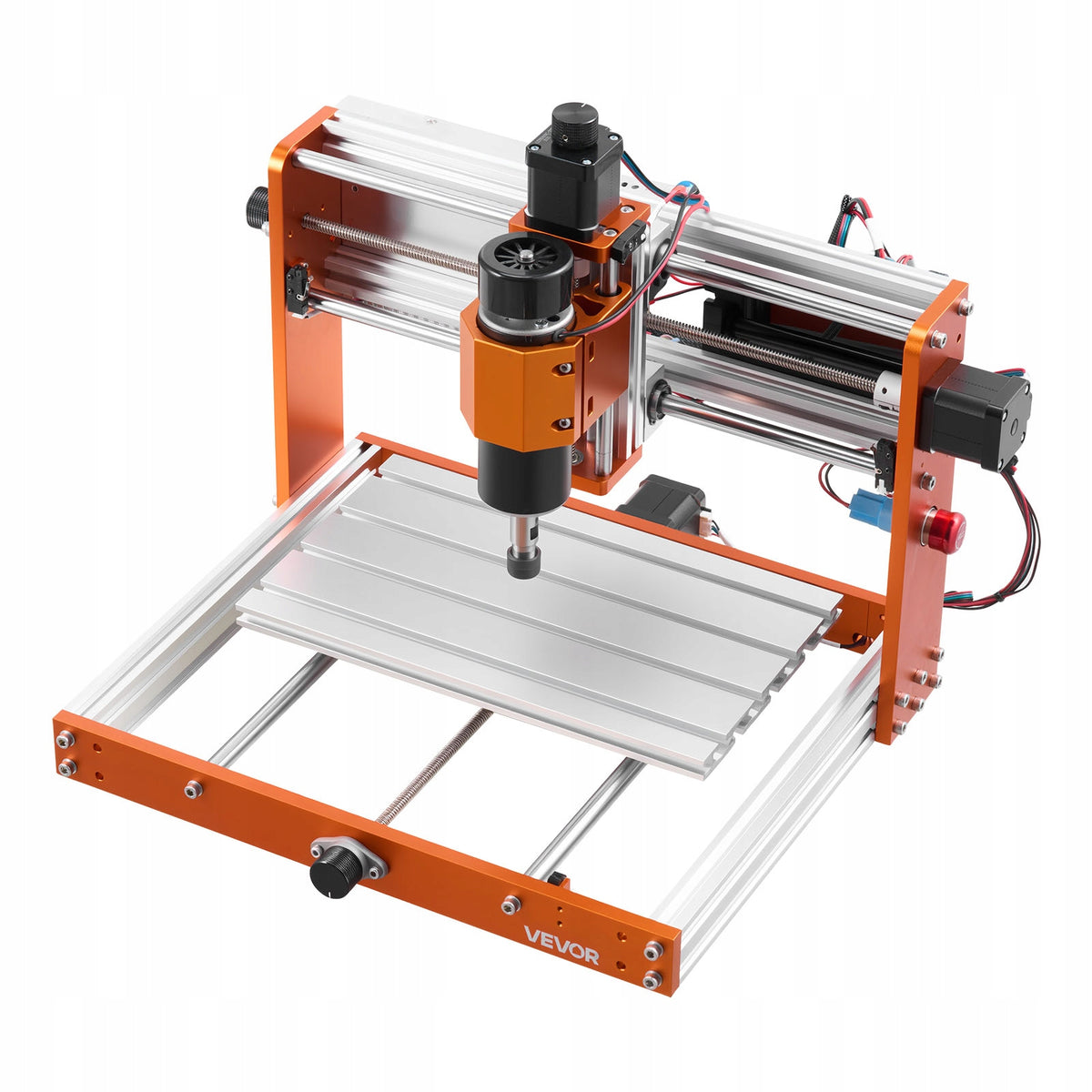

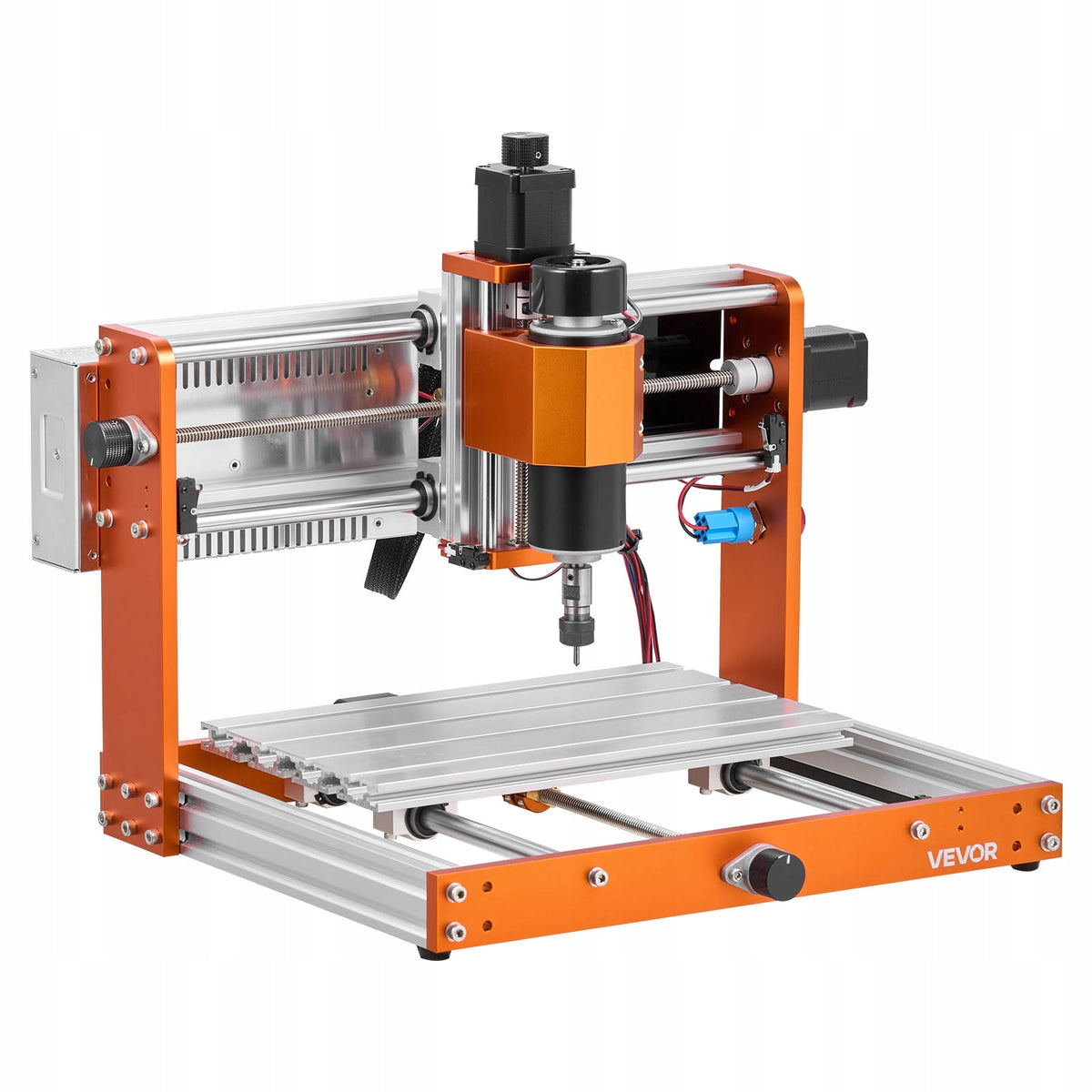

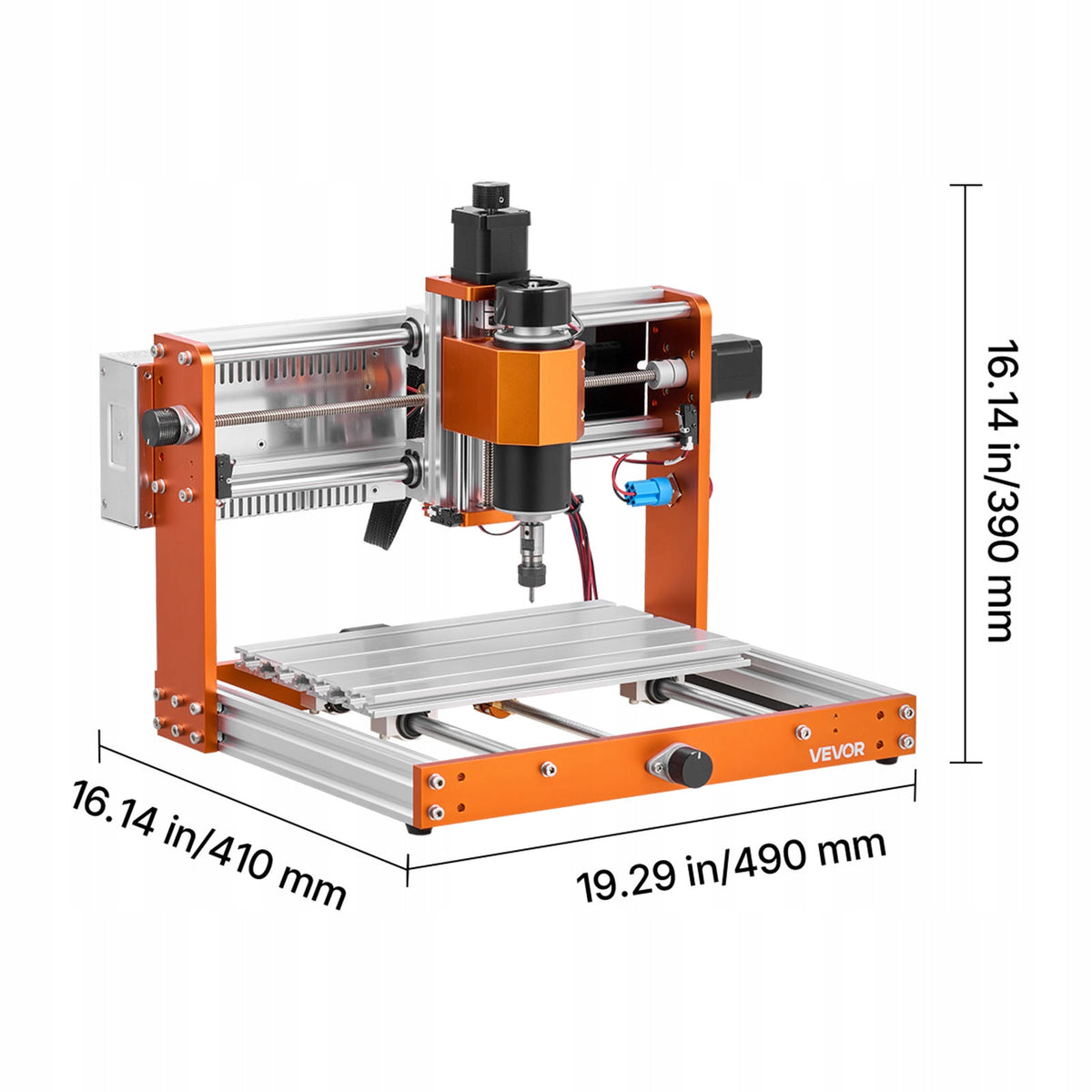

VEVOR 500W Professional 3-Axis CNC Milling Machine Engraver
Regular price
155177zł
- Input voltage AC 100-240 V, 50/60 Hz
- Spindle Power 500 W
- Main material 6061 aluminum alloy
- Model 3018-PRO MAX
- Working Area 300 x 180 x 80 mm (11,81 x 7,08 x 3,15 in)
- Possibility to extend the Y-axis to 400 mm
- Frame made of 6061 aluminum alloy for vibration reduction and precise engraving
- High torque stepper motor for precise motion control
VEVOR 500W PROFESSIONAL 3-AXIS CNC MILLING ENGRAVING MACHINE
SET CONTENTS
✔️ 1 x Vevor CNC milling machine with 500W spindle
✔️ 1.8-inch offline controller for computer-free operation
✔️ Compatibility with GRBL f1.1 software and Candle, Easel, LaserGRBL, and LightBurn programs
PRODUCT FEATURES
✔️ Working area of 300 x 180 x 80 mm (11.81 x 7.08 x 3.15 inches) with Y-axis extendable to 400 mm
✔️ 500W spindle with speeds up to 12000 rpm
✔️ X/Y-axis speed up to 4000 mm/min, Z-axis up to 1000 mm/min

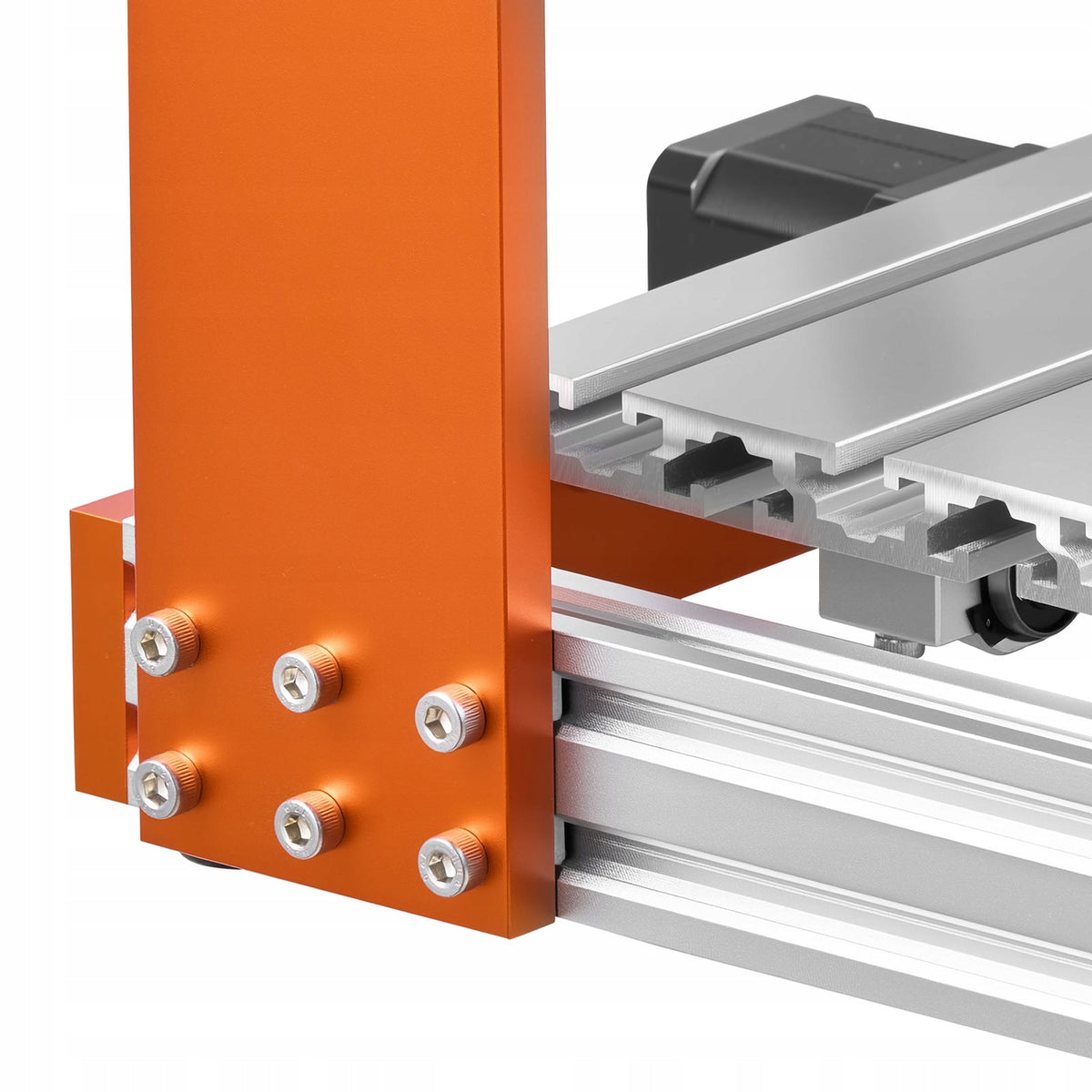

✔️ Frame made of 6061 aluminum alloy for vibration reduction and precise engraving
✔️ High-torque stepper motor for accurate motion control
✔️ Solid and stable base ensuring smooth operation
PRODUCT ADVANTAGES
✔️ Offline operation without the need to connect to a computer
✔️ Safe design with 6 limit switches, emergency stop button, and overcurrent protection
✔️ Easy assembly thanks to pre-assembled and pre-wired components
✔️ Versatile use – milling and engraving of wood, leather, vinyl, acrylic, and soft metals
✔️ Durability of up to 5000 hours of operation for long-lasting use
SPECIFICATIONS
✔️ Model: 3018-PRO MAX
✔️ Input voltage: AC 100-240 V, 50/60 Hz
✔️ Spindle power: 500 W
✔️ Working area: 300 x 180 x 80 mm (11.81 x 7.08 x 3.15 inches)
✔️ Spindle speed: 12000 rpm
✔️ X/Y-axis speed: up to 4000 mm/min (factory default 2000 mm/min)
✔️ Z-axis speed: up to 1000 mm/min (factory default 100 mm/min)
✔️ Main material: 6061 aluminum alloy
✔️ Computer connection: USB
✔️ Offline controller: 1.8 inches (4.57 cm)
START CREATING WITH THE VEVOR CNC MILLING MACHINE TODAY
Discover new possibilities in engraving and cutting with the robust and precise Vevor CNC milling machine. See how easily you can bring your projects to life on various materials, utilizing convenient offline operation and broad software compatibility.
- Brand VEVOR
- SKU R80595
- Technical specifications
